Professional Handheld Shock Mount System
The RAD-3 represents a specialized approach to handheld microphone mounting, combining proven shock isolation technology with an integrated pistol grip design. This pistol grip shock mount xlr cable system addresses the specific requirements of location recording, where traditional boom-mounted systems may prove impractical or restrictive.

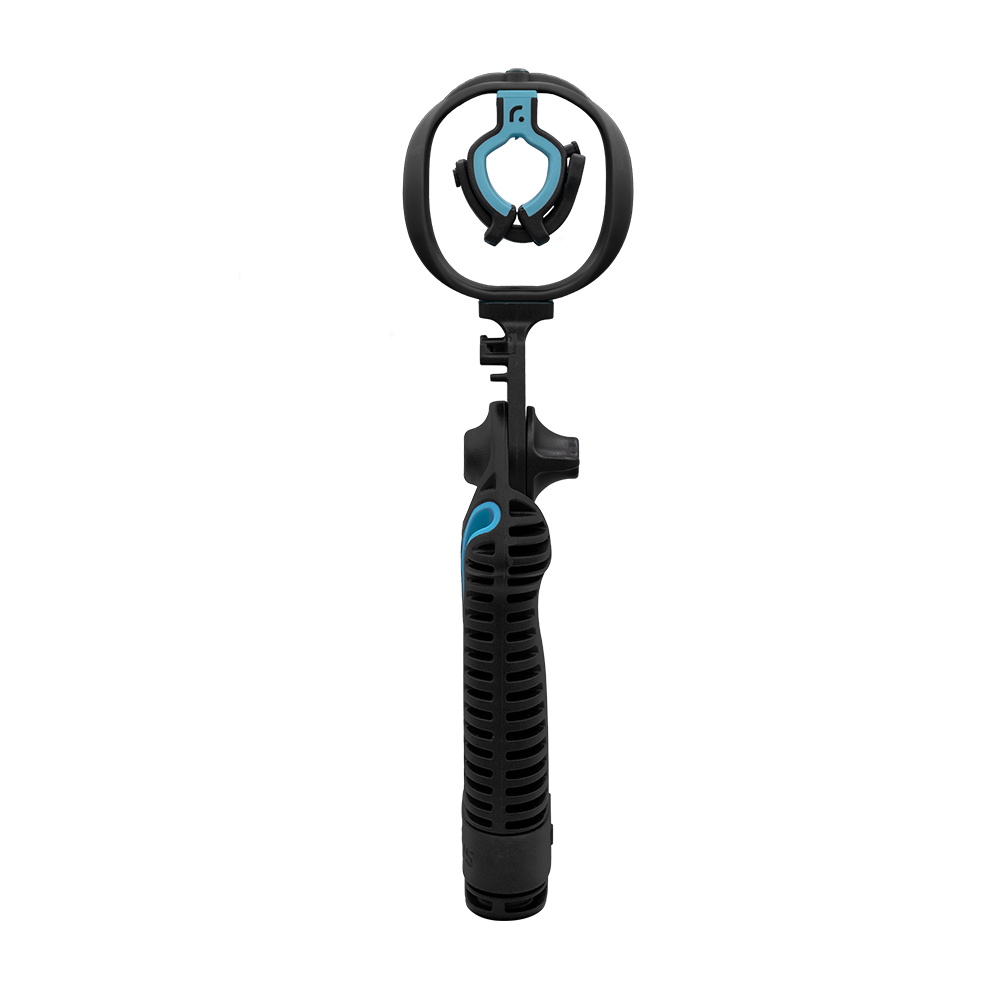

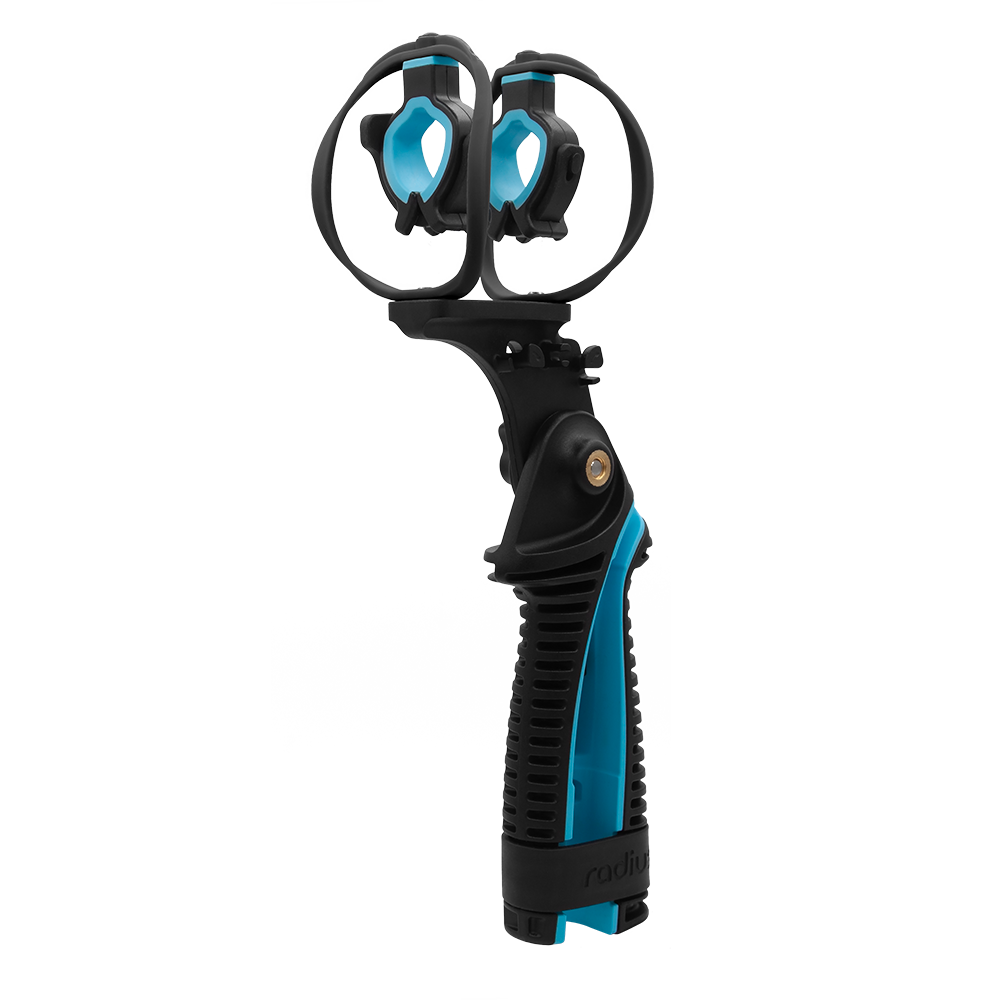

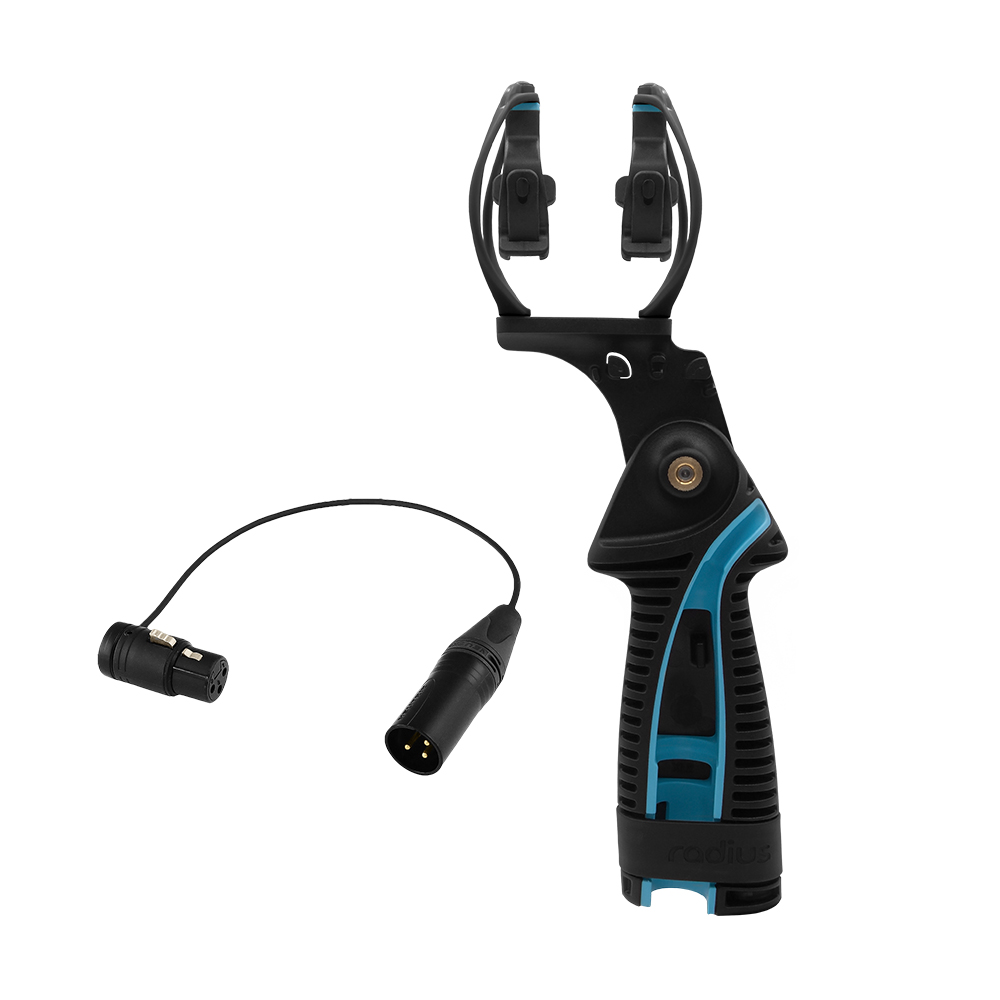

Built around the established RAD shock mount platform, the RAD-3 incorporates a purpose-designed handle that maintains the isolation characteristics of stationary mounts while enabling handheld operation. The system includes a factory-fitted 3-pin XLR cable, eliminating external connections that can introduce handling noise or signal degradation during recording sessions.
Construction and Materials
The mount utilizes thermoplastic elastomer components produced through high-precision injection moulding in an ISO-9000 certified facility. This manufacturing approach ensures consistent dimensional accuracy and material properties across production runs, critical factors in maintaining predictable isolation performance.

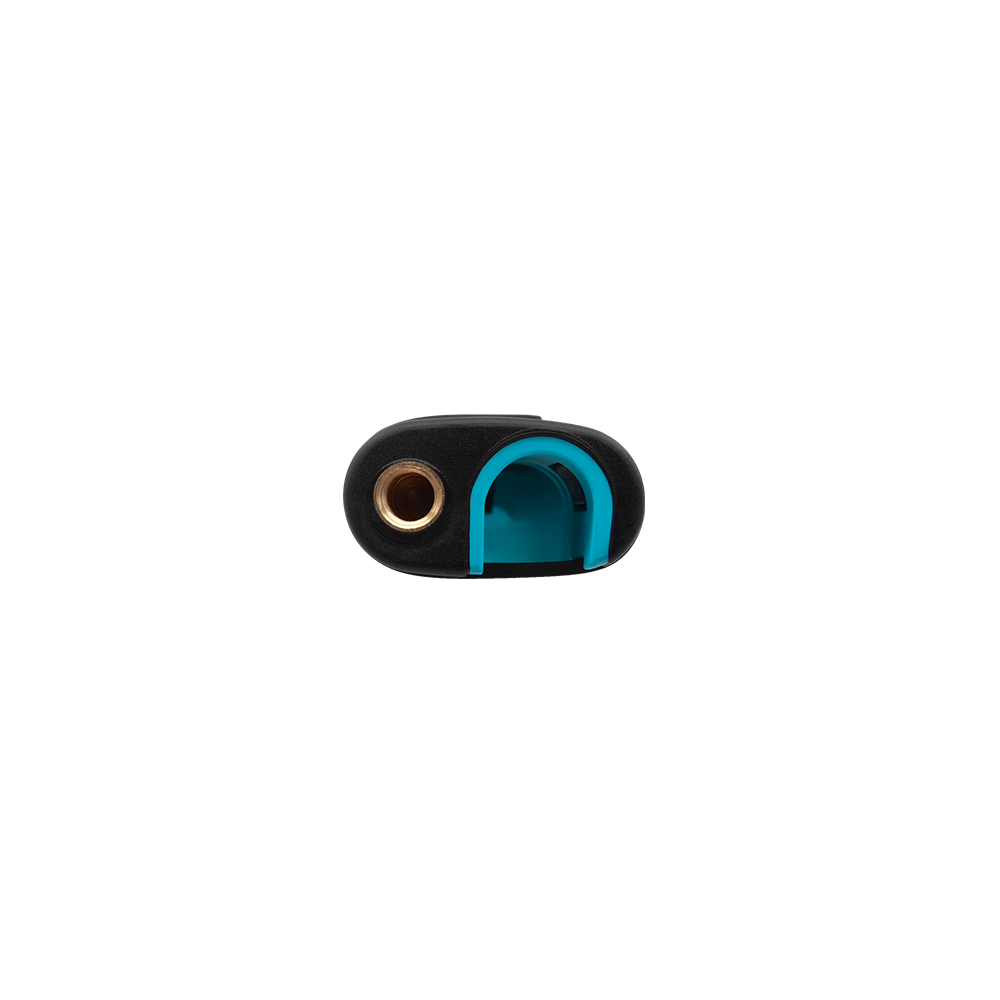

The pistol grip handle features a 3/8-inch threaded mounting point at its base, allowing integration with standard boom poles or stand adapters when required. This dual-purpose design extends operational flexibility beyond pure handheld applications, supporting various recording configurations within the same system.
Microphone Compatibility and Mounting

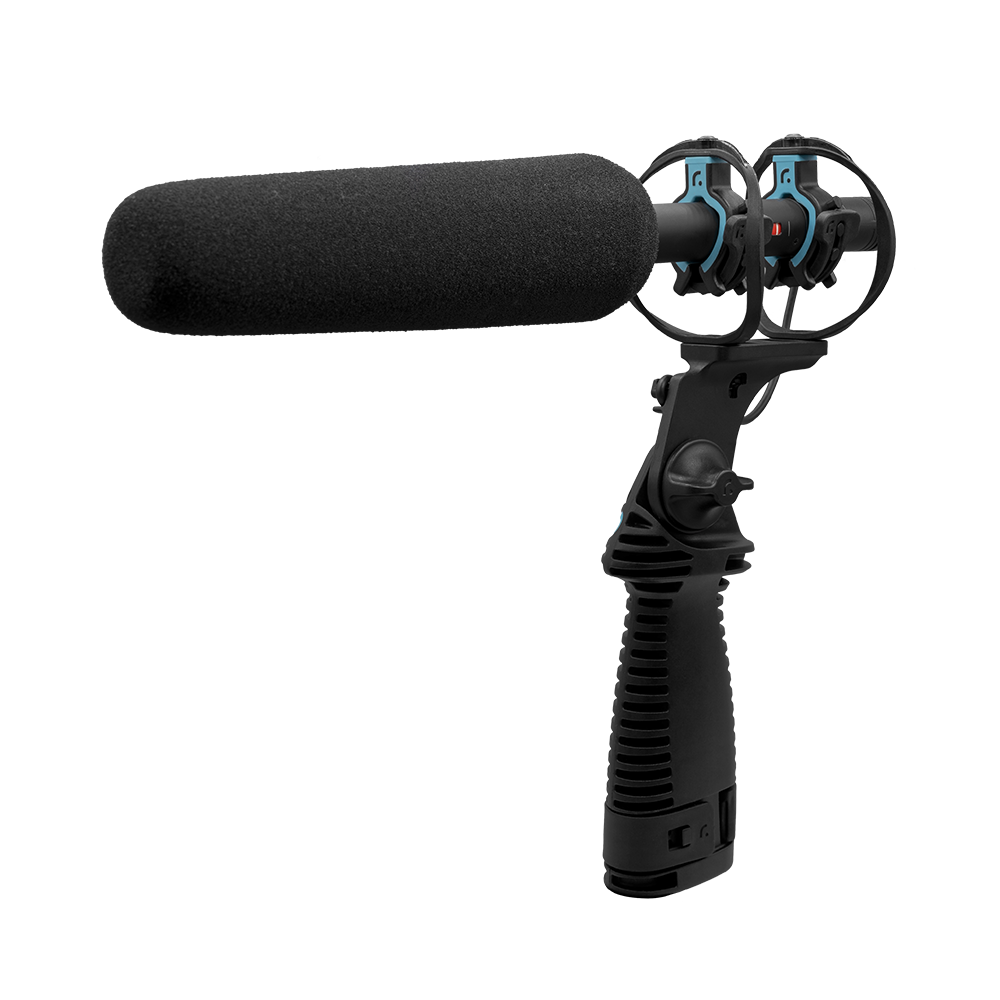

The RAD-3 accommodates shotgun microphones with diameters ranging from 19mm to 25mm and lengths up to 250mm. The universal mounting system utilizes soft-coated clips that distribute clamping pressure evenly around the microphone body, minimizing stress concentration points that could affect sensitive internal components.
Compatible microphones include the Sennheiser MKH416 and MKH8060, Schoeps CMIT 5 and SuperCMIT models, Sanken CS-3, Rode NTG-3, and DPA 2017/4017 series. The mount accommodates these microphones with or without slide-on windshields, maintaining proper clearance for furry windscreen systems commonly used in outdoor recording environments.
Isolation Hoop System

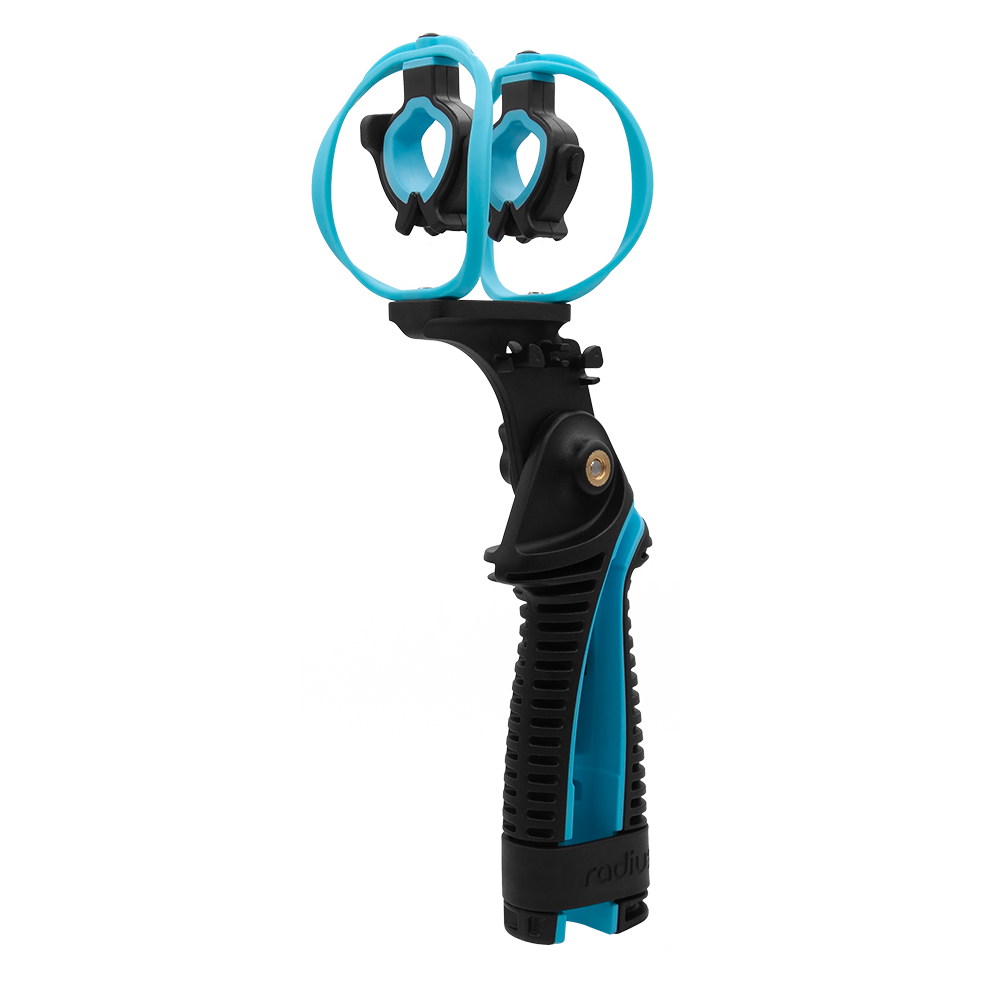

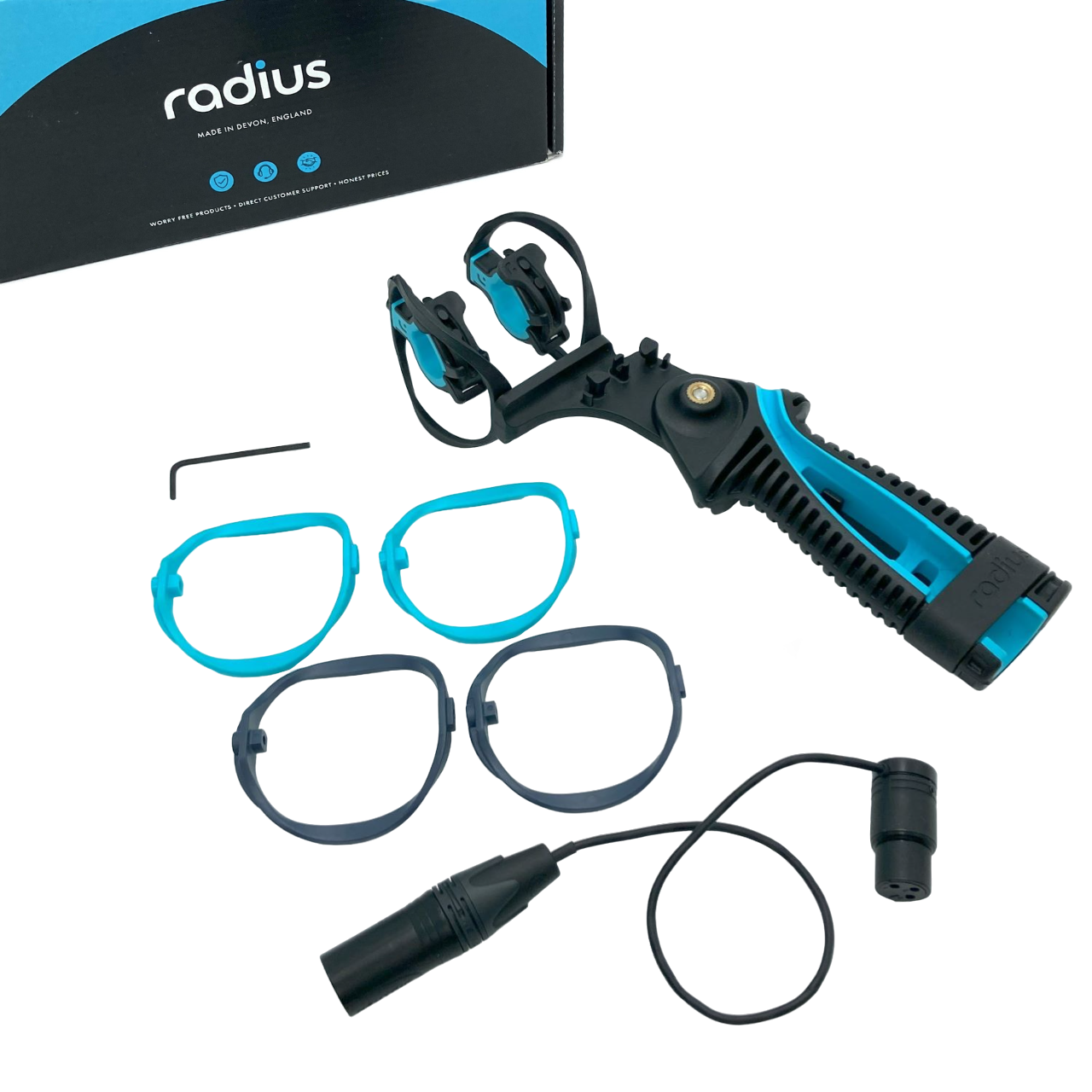

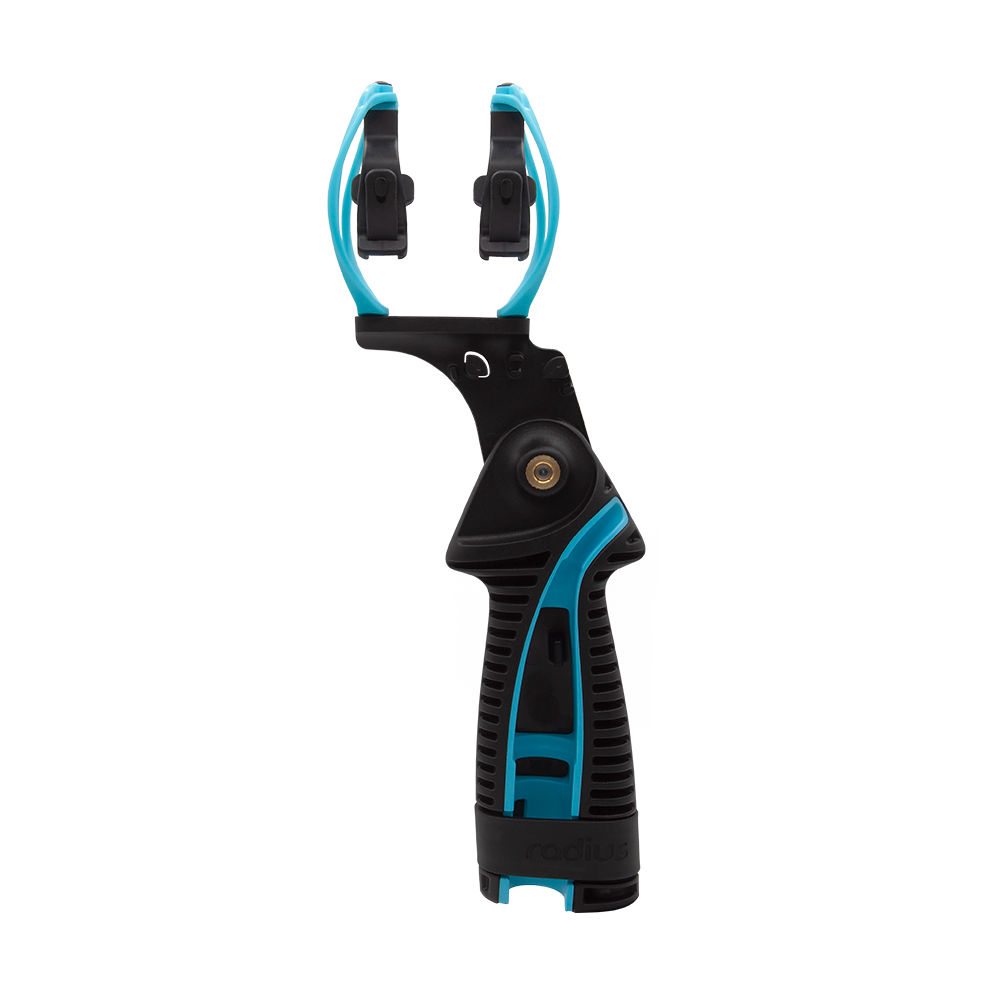

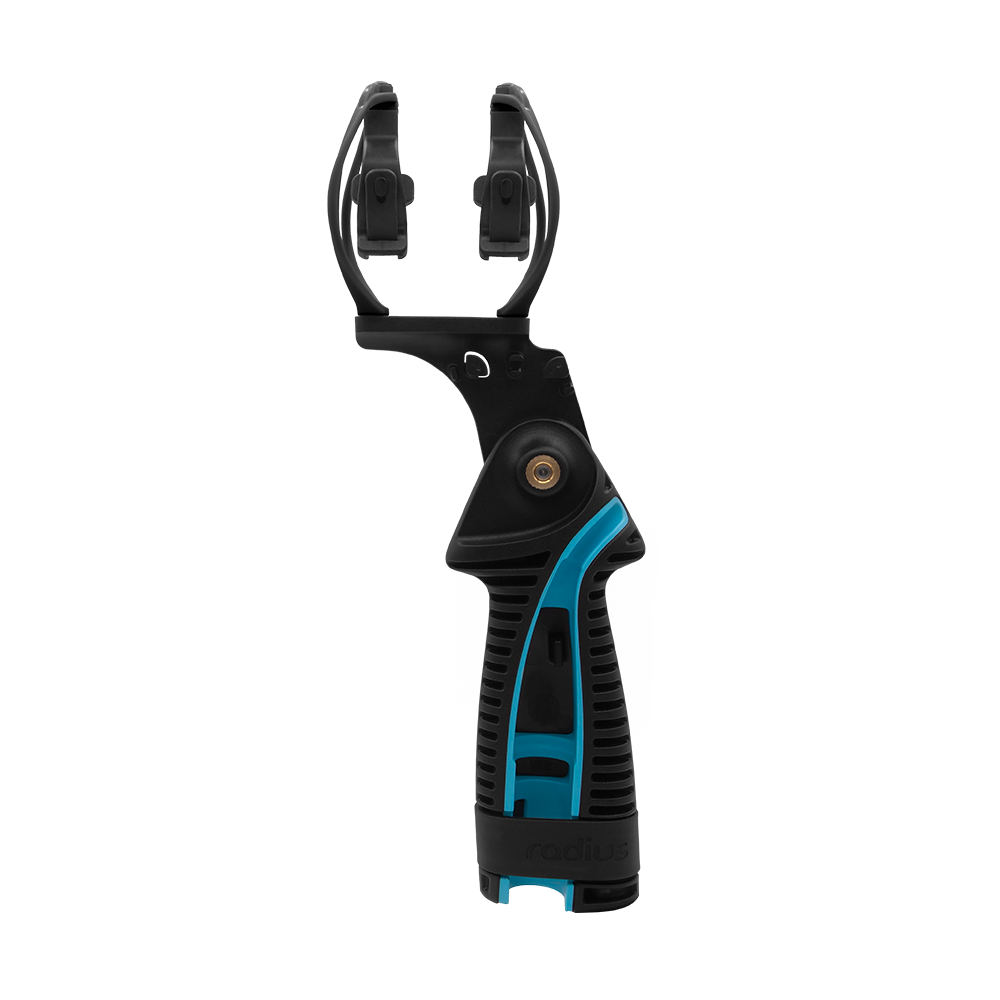

Each RAD-3 includes three pairs of interchangeable isolation hoops, each engineered for specific operational requirements. The standard firmness hoops, identified by black colouring, provide balanced isolation suitable for general recording applications. Light blue hoops offer reduced stiffness for environments requiring maximum sensitivity to low-frequency vibrations.
Dark blue hoops deliver increased firmness for applications involving heavier microphones or more aggressive handling conditions. The hoops feature enhanced thickness compared to earlier RAD-1 designs, with additional 3mm bracing at the top section to support front-heavy microphone configurations commonly encountered with shotgun designs.
Handheld Recording Applications
The pistol grip shock mount xlr cable configuration proves particularly effective in documentary production, where boom operator mobility may be constrained by location factors or crew size limitations. The integrated handle design allows single-operator control of both microphone positioning and basic gain adjustment through connected recording devices.
Interior recording scenarios benefit from the reduced profile compared to traditional boom systems, particularly in confined spaces where boom pole manipulation becomes problematic. The handheld approach also eliminates boom shadow concerns in lighting-sensitive environments, providing audio operators with greater positioning flexibility.
XLR Integration and Signal Management

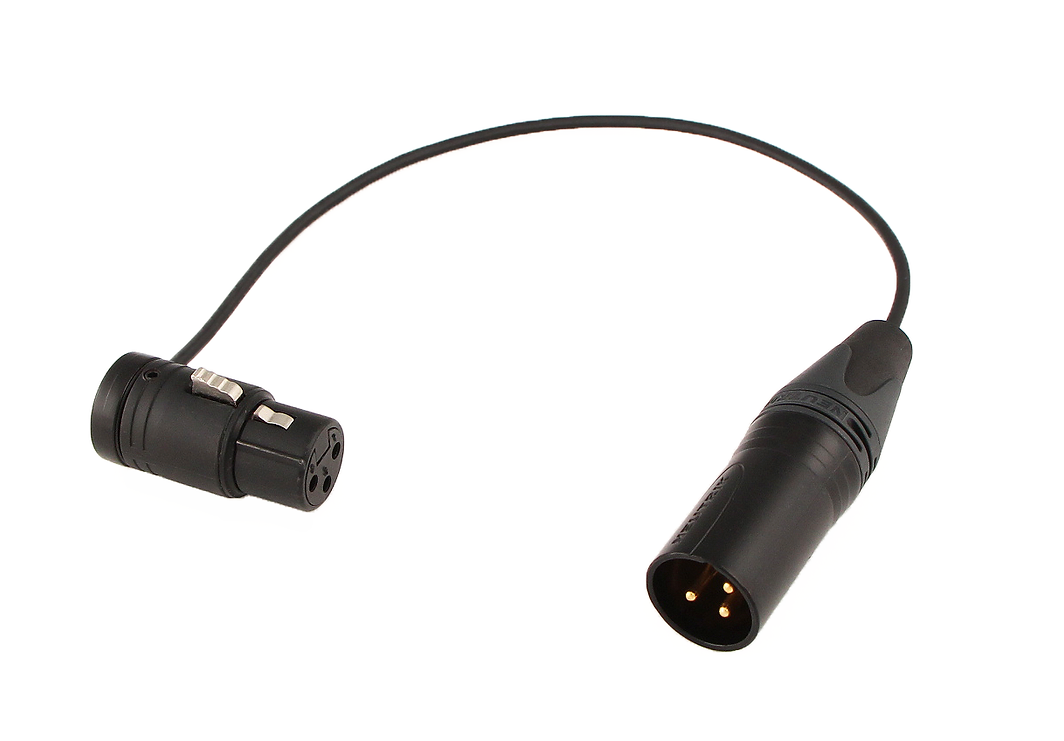

The embedded XLR connection system maintains signal integrity while reducing external cable management requirements. The low-profile connector design minimizes bulk at the handle interface, preventing interference with grip positioning or operation ergonomics.
Cable routing through the handle structure protects the connection from handling stress and environmental exposure. This integrated approach reduces potential failure points compared to external cable connections, particularly relevant in field recording applications where equipment reliability directly impacts production schedules.
Professional Workflow Integration
Location sound recordists benefit from the rapid deployment characteristics of the pistol grip configuration. The system requires minimal setup time compared to boom-mounted alternatives, supporting quick position changes or unplanned recording opportunities common in documentary and news gathering applications.
The 3/8-inch threading compatibility ensures the RAD-3 can integrate with existing boom pole inventories when circumstances require extended reach capabilities. This flexibility allows equipment inventories to serve multiple operational requirements without duplicate mounting systems.
Maintenance and Storage
The thermoplastic elastomer construction resists common environmental contaminants while maintaining elasticity across typical operating temperature ranges. Regular inspection of hoop condition and XLR connection integrity supports consistent performance in demanding field conditions.
Storage considerations should account for hoop compression during extended periods of non-use. Maintaining hoops in uncompressed positions helps preserve their isolation characteristics and operational lifespan. The integrated cable requires standard XLR care practices to prevent connector contamination or cable fatigue at stress points.
