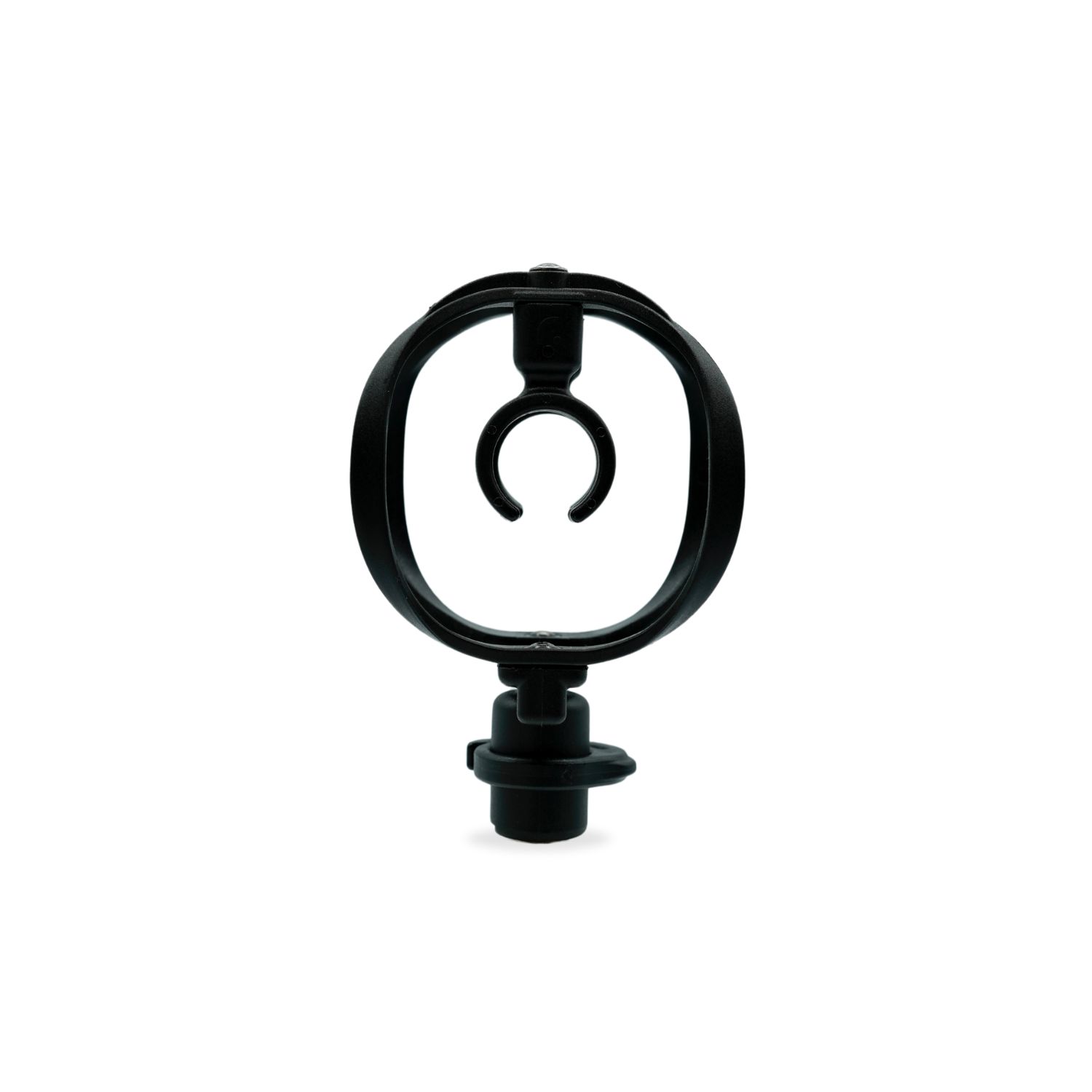

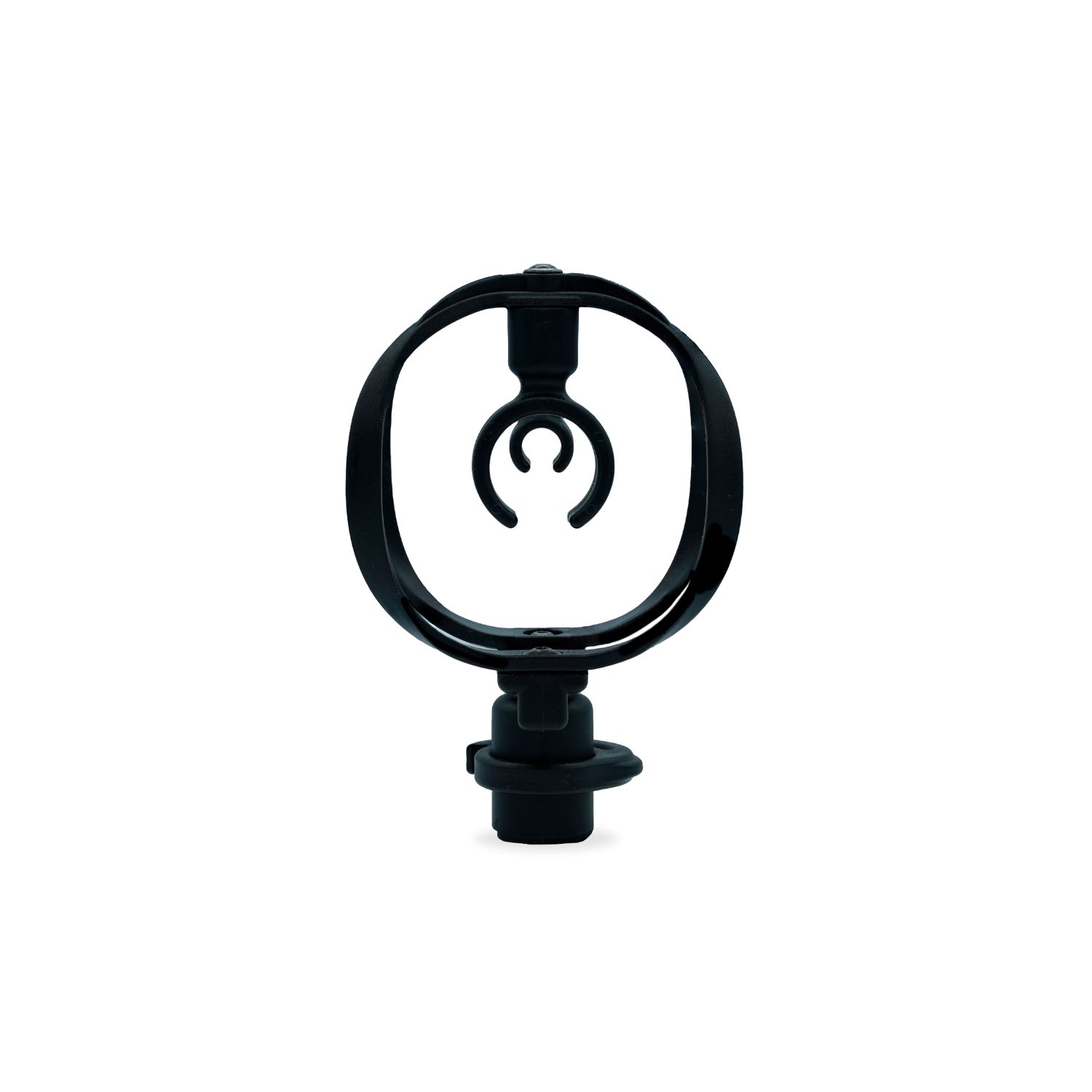

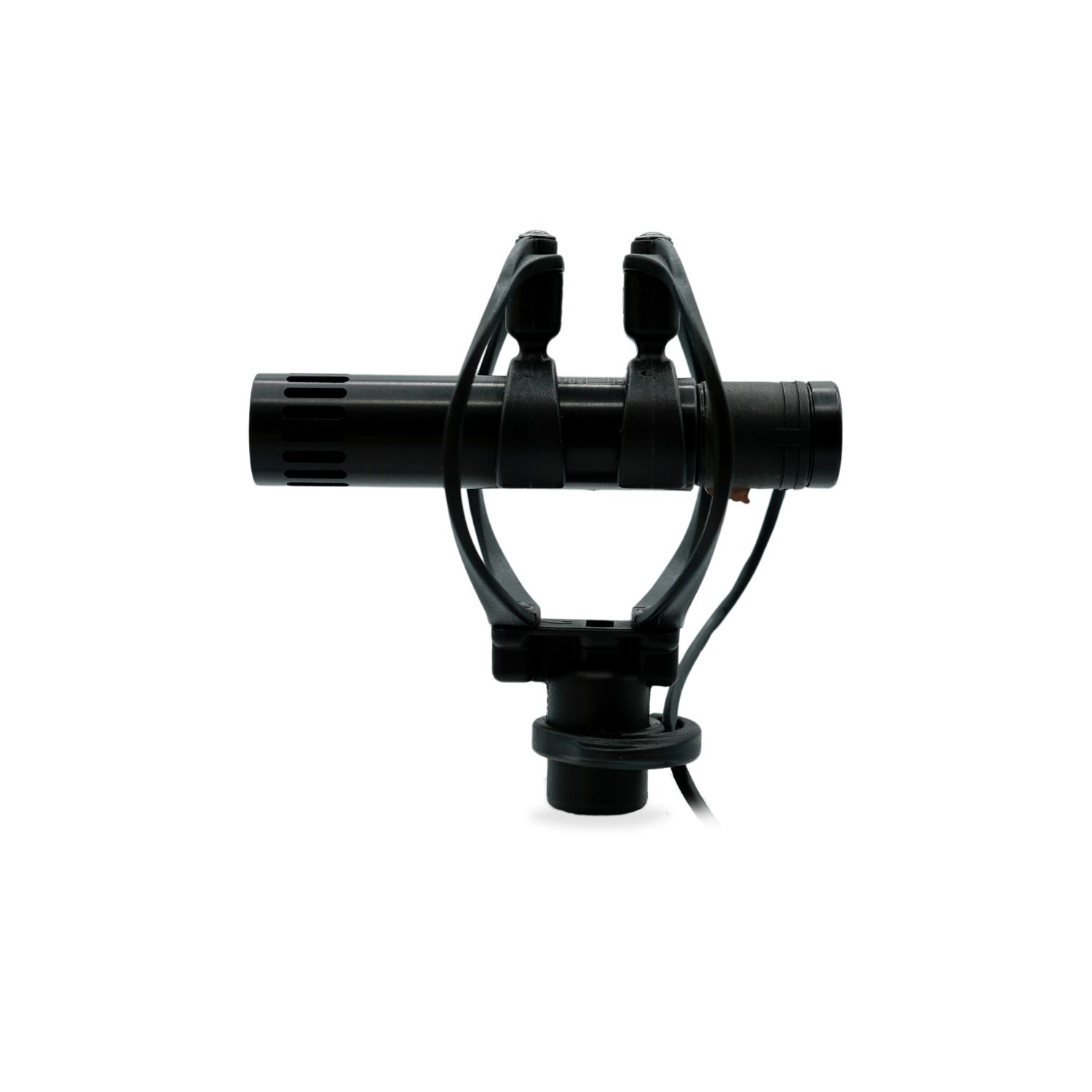

RAD-2 Field Edition Single Shock Mount
The RAD-2 Field Edition represents a purpose-built solution for field recording applications requiring exceptional isolation from mechanical vibration and handling noise. This single-position shock mount accommodates a comprehensive range of small condenser microphones through its interchangeable clip system and adjustable suspension geometry.
Interchangeable Microphone Clip System

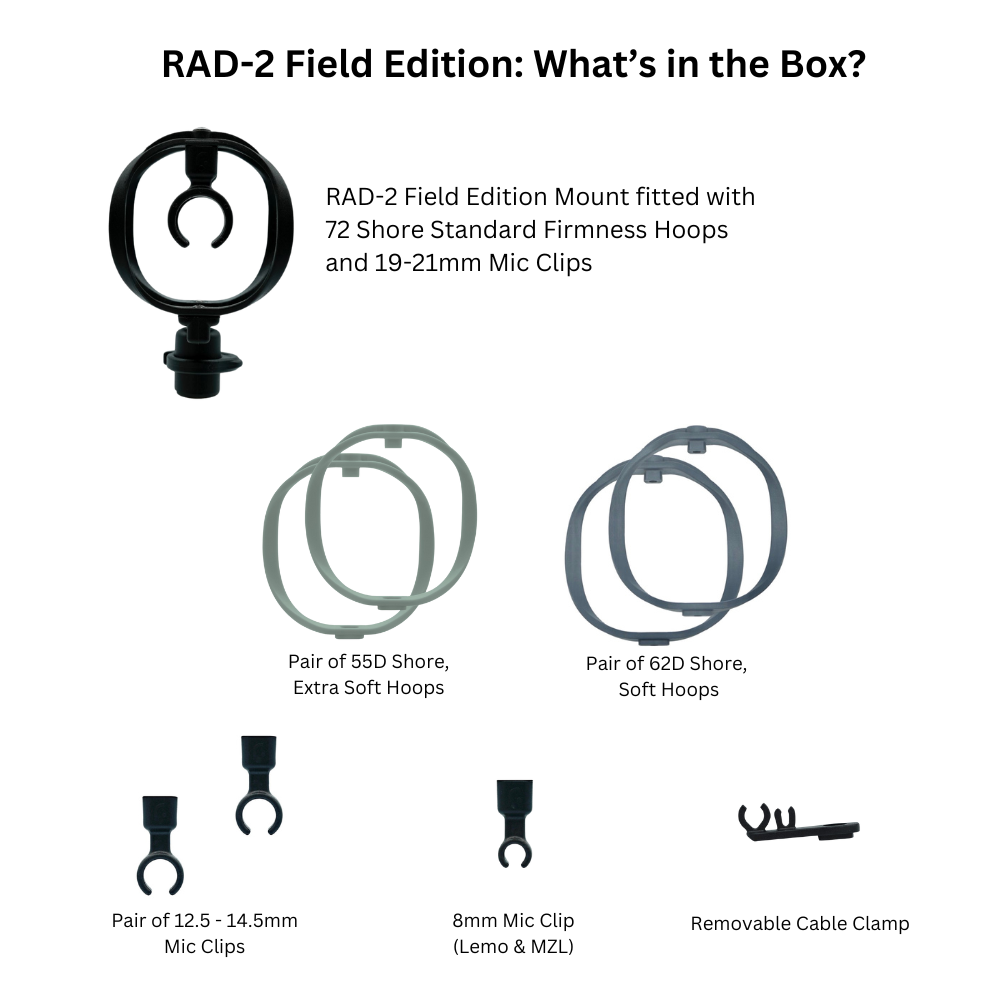

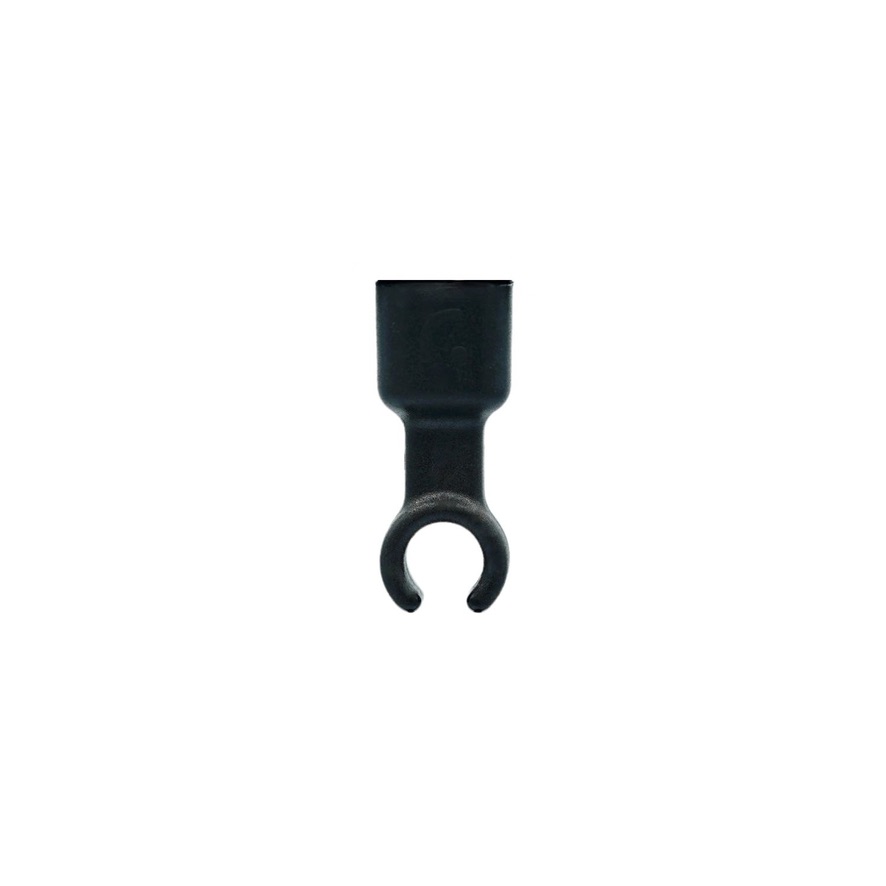

The field recording shock mount single incorporates three distinct clip sizes to accommodate varying microphone diameters. The system includes a pair of 19-21mm clips for larger condenser microphones, a pair of 12.5-14.5mm clips for mid-range microphones, and a single 8mm clip specifically designed for Lemo or MZL connector configurations.
This clip configuration supports professional microphones including DPA 4018, Sennheiser MKH8000 Series, Schoeps CMC/CCM Series, Sanken CS-M1, Sanken CMS-50, Lom basicUcho, Lom Ucho Pro, Lom Uši, Lom Uši Pro, Oaka Mini Verdi, FEL Clippy, FEL Pluggy, Sonorous Objects SO Standard and SO.100 Series microphones.
Adjustable Suspension Hoop Configuration
Three pairs of interchangeable suspension hoops provide variable isolation characteristics based on recording environment and microphone sensitivity requirements. The extra soft hoops (55-shore durometer) offer maximum isolation for sensitive recording scenarios, while soft hoops (62-shore) provide balanced performance for general field work. Standard firmness hoops (72-shore) deliver controlled isolation for more demanding mechanical environments.

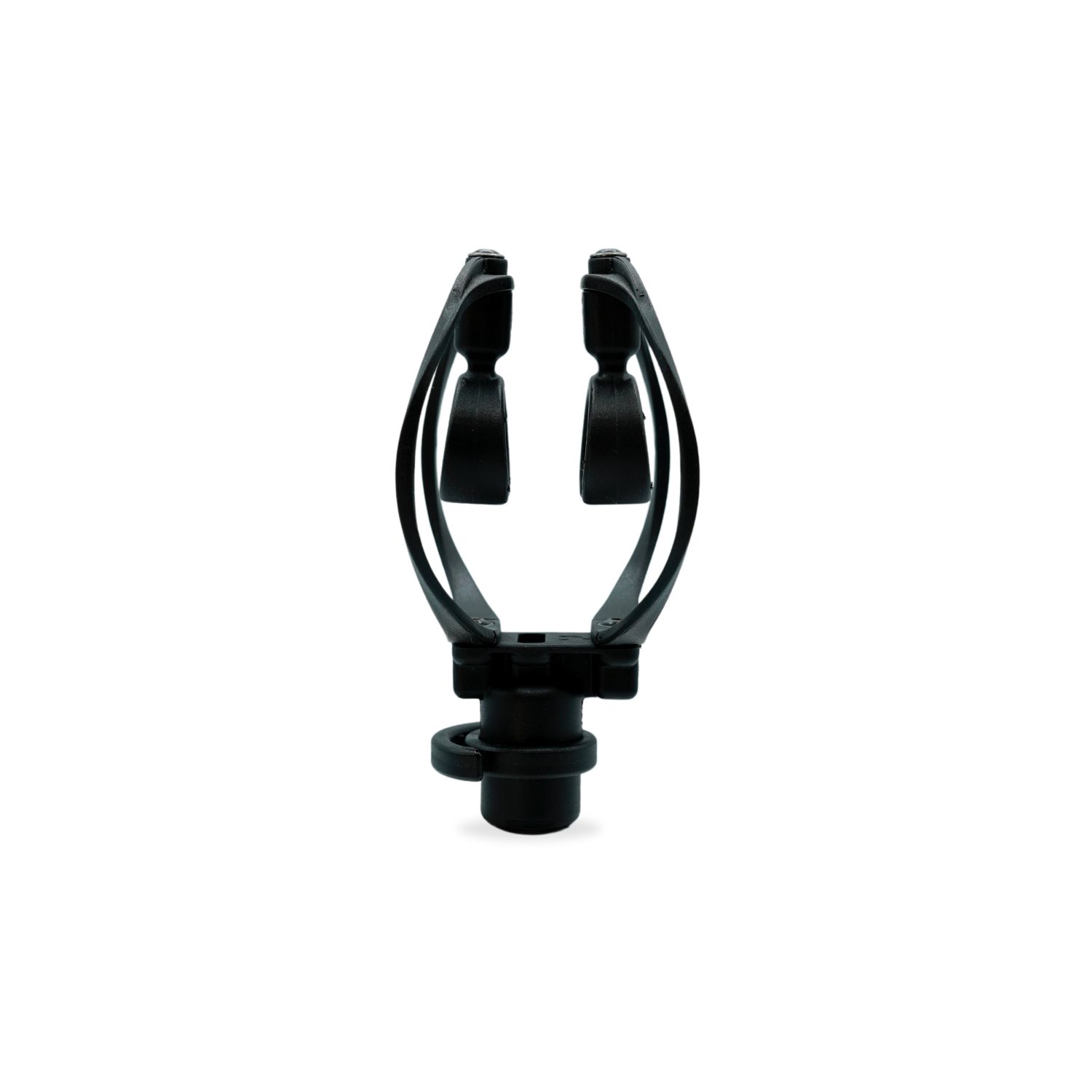

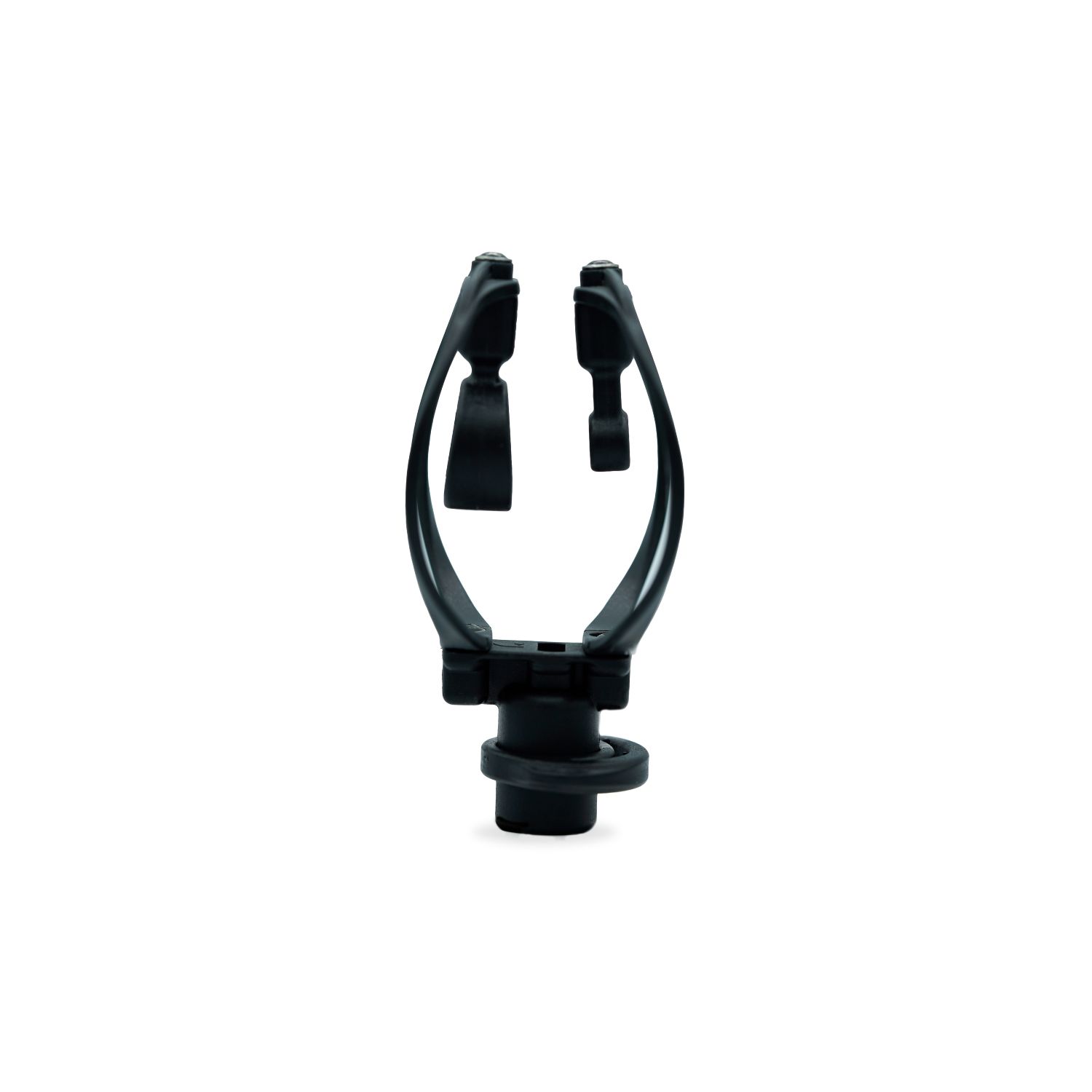

The mounting bracket accommodates suspension hoop spacing at either 25mm or 15mm intervals, allowing optimization for different microphone lengths and recording scenarios. Single hoop configurations support smaller microphones where reduced suspension footprint is required.
Professional Field Recording Integration
The 3/8-inch female threaded base provides secure mounting compatibility with professional boom poles, microphone stands, and field recording accessories. This standardized threading ensures reliable mechanical connection across broadcast and location recording equipment.

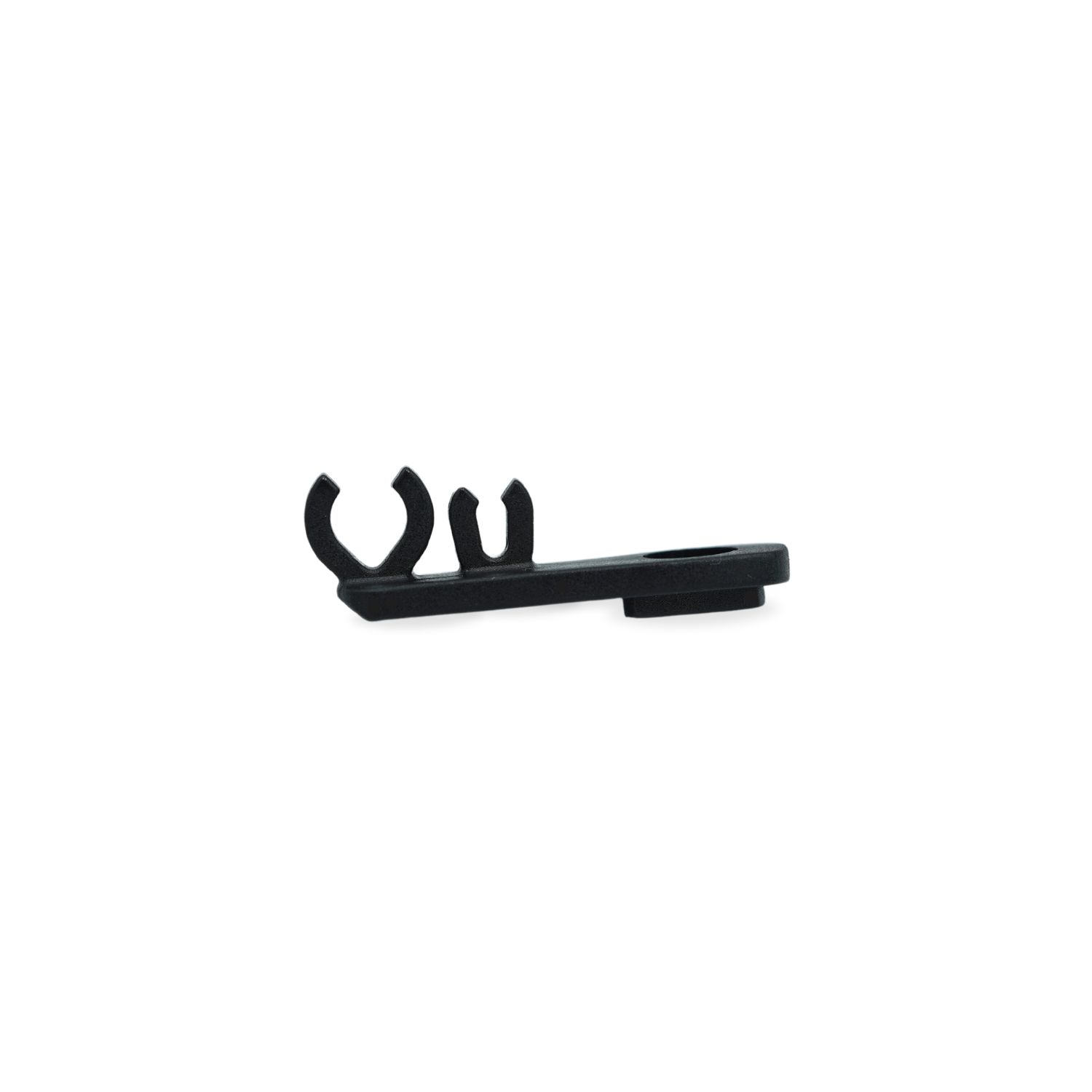

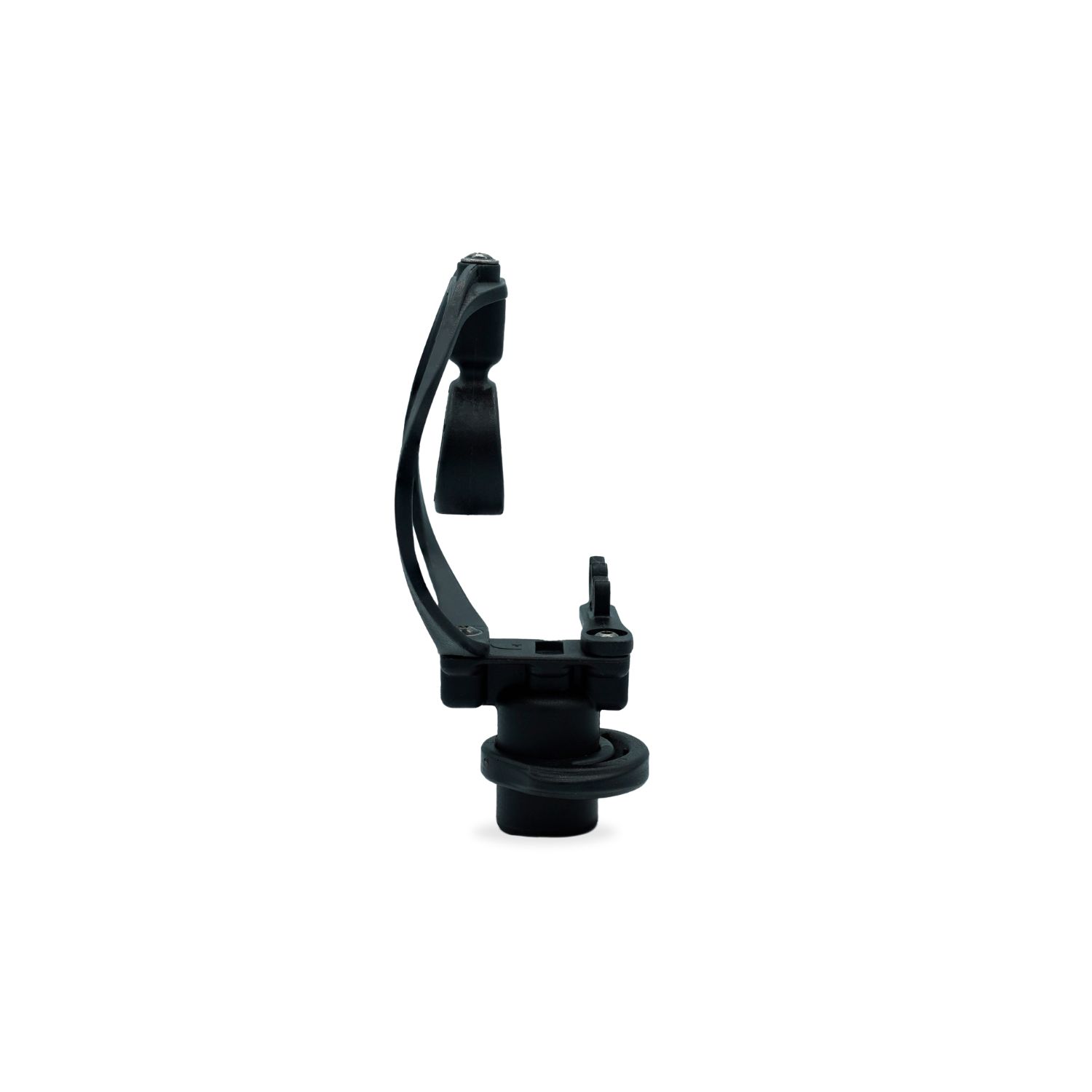

Cable management features include an integrated retention clip at the base mount, with provision for an optional upper clip position. This dual-point cable management prevents stress on microphone connections during field operation and reduces cable-transmitted vibration.
Construction and Durability
Manufactured in the UK from high-impact resistant materials, the RAD-2 Field Edition maintains structural integrity under professional field conditions. The shock mount construction resists environmental stress, temperature variation, and mechanical impact encountered in broadcast and location recording applications.
The interchangeable component design allows field replacement of clips and suspension hoops without requiring complete mount replacement, supporting extended operational life and reduced maintenance costs.
Workflow Applications
Field recording workflows benefit from the rapid microphone exchange capability enabled by the interchangeable clip system. Sound recordists can adapt to different microphone requirements without carrying multiple specialized mounts, reducing equipment weight and setup complexity.
The variable suspension firmness accommodates different recording scenarios, from sensitive acoustic recording requiring maximum isolation to more robust applications where controlled damping is preferred. This adaptability supports consistent recording quality across varying field conditions.
Technical Performance Characteristics
The suspension system provides effective isolation across the frequency range where mechanical vibration typically interferes with field recording. The multi-hoop design distributes mechanical load while maintaining microphone positioning accuracy during operation.
Clip retention force maintains secure microphone positioning without excessive clamping pressure that could affect microphone performance or cause mounting stress. The graduated clip sizes ensure appropriate fit across the supported microphone diameter range.
Care and Maintenance
Regular inspection of suspension hoops ensures continued isolation performance, particularly after extended field use or exposure to temperature extremes. The interchangeable design allows replacement of worn components while maintaining the base mount structure.
Cable retention clips should be checked periodically to ensure proper spring tension and secure cable management. The threaded base connection benefits from occasional cleaning to maintain smooth mounting operation.
