RAD-2 Shock Mount with 3-Pin XLR Cable for Shotgun Microphones

Professional Shotgun Microphone Shock Mount with Integrated XLR

The RAD-2 shock mount represents a specialized solution for professional boom operators working with shotgun microphones in demanding field recording environments. This shotgun mic shock mount xlr cable system addresses the critical need for vibration isolation while providing integrated signal routing through a low-profile 3-pin XLR connection.

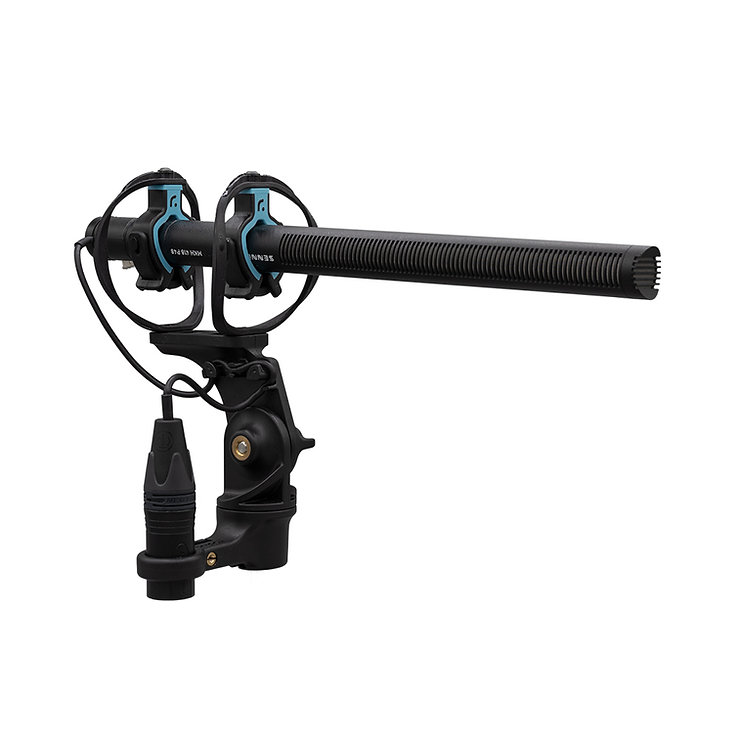

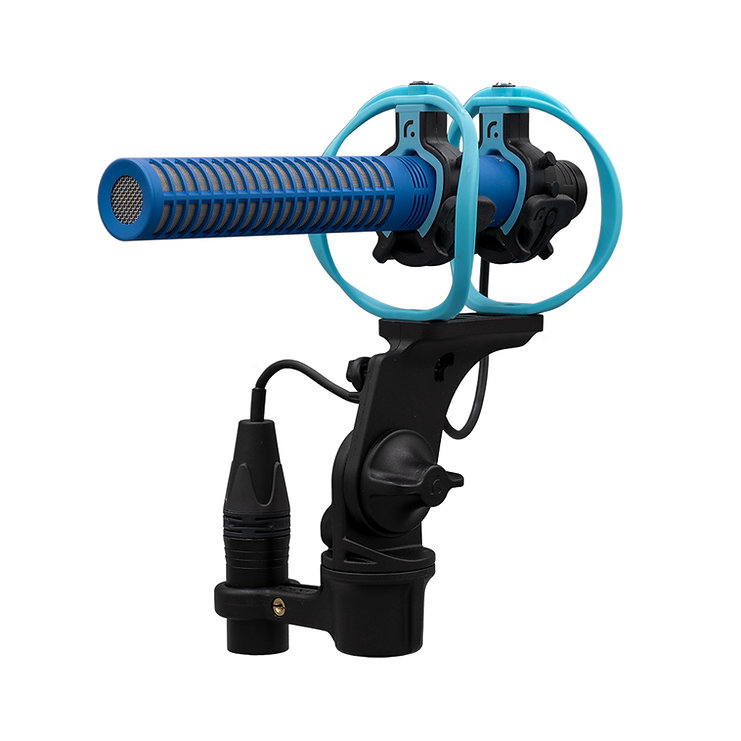

Designed specifically for shotgun microphones with diameters ranging from 19 to 25mm and lengths up to 250mm, the RAD-2 accommodates industry-standard models including the Sennheiser MKH416, MKH8060, and MKE600, alongside the Schoeps CMIT 5, SuperCMIT, and MiniCMIT series. The mount also supports the Sanken CS-3, Rode NTG-3, and DPA 2017 and 4017 models.

Adaptive Suspension System

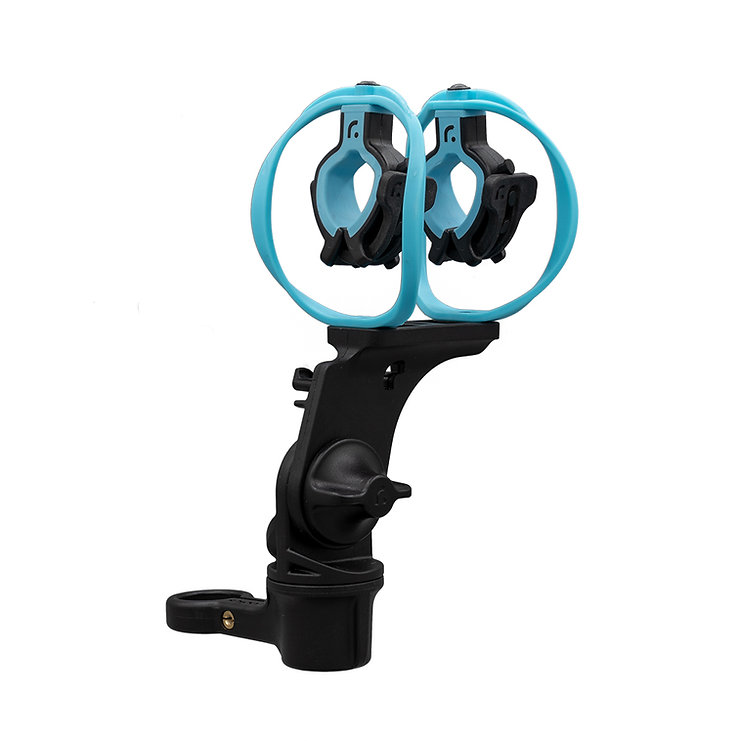

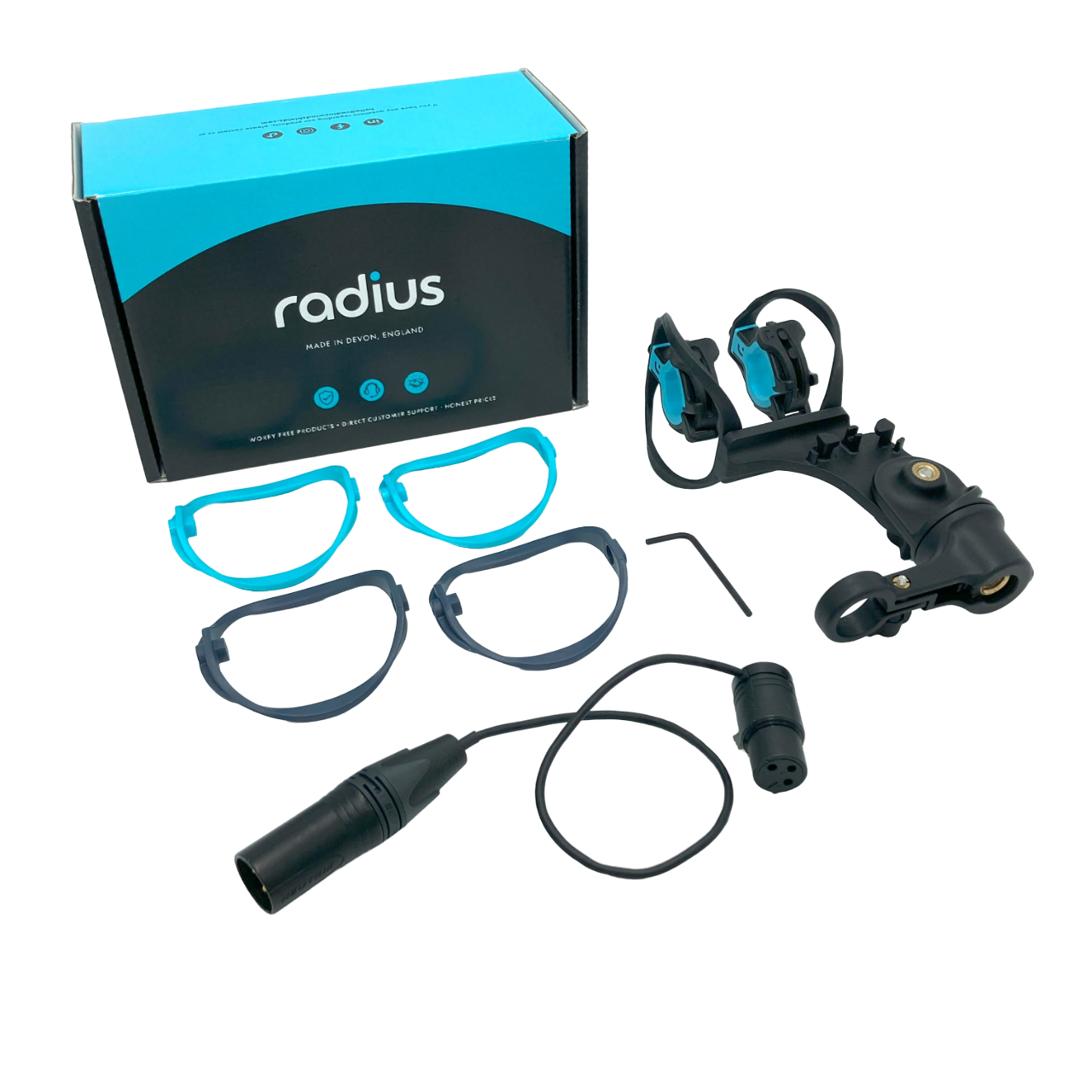

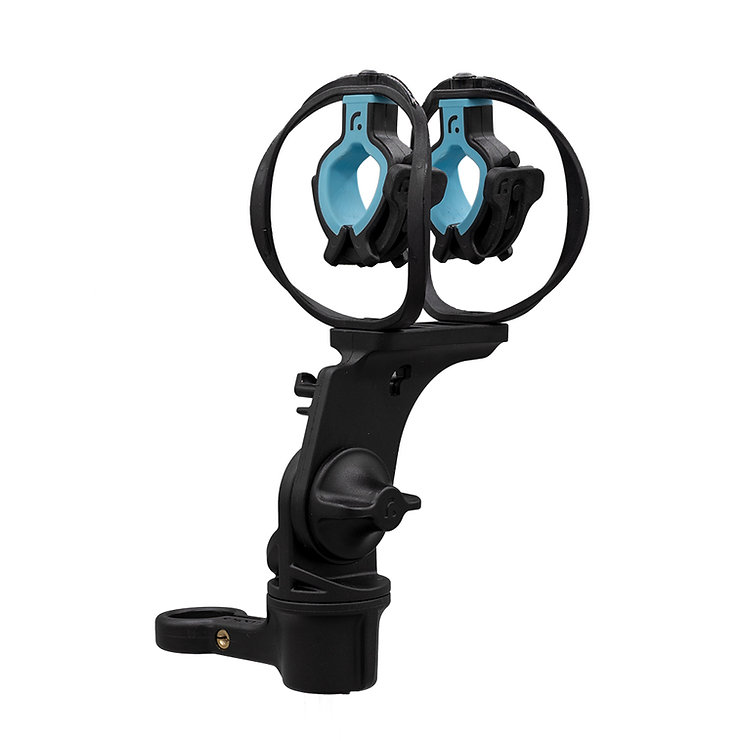

The RAD-2 features an enhanced suspension design with three distinct hoop firmness options to accommodate different microphone weights and recording scenarios. The standard firmness hoops (black) provide general-purpose isolation suitable for most shotgun microphones. Softer hoops (light blue) offer increased sensitivity for lighter microphones or situations requiring maximum vibration dampening. Extra firm hoops (dark blue) support front-heavy microphones while maintaining precise positioning during extended boom operations.

The hoop design incorporates additional thickness compared to the RAD-1 series, with an extra 3mm of top bracing specifically engineered to handle the forward weight distribution characteristic of shotgun microphones. This reinforcement prevents sagging during prolonged handheld recording sessions and maintains consistent microphone positioning.

Professional Construction and Materials

All components utilize thermoplastic elastomers manufactured through high-precision injection molding in an ISO-9000 certified facility. This construction approach ensures dimensional consistency and material durability compared to 3D-printed alternatives. The soft-coated universal microphone clips accommodate the specified diameter range while protecting microphone finishes from abrasion.

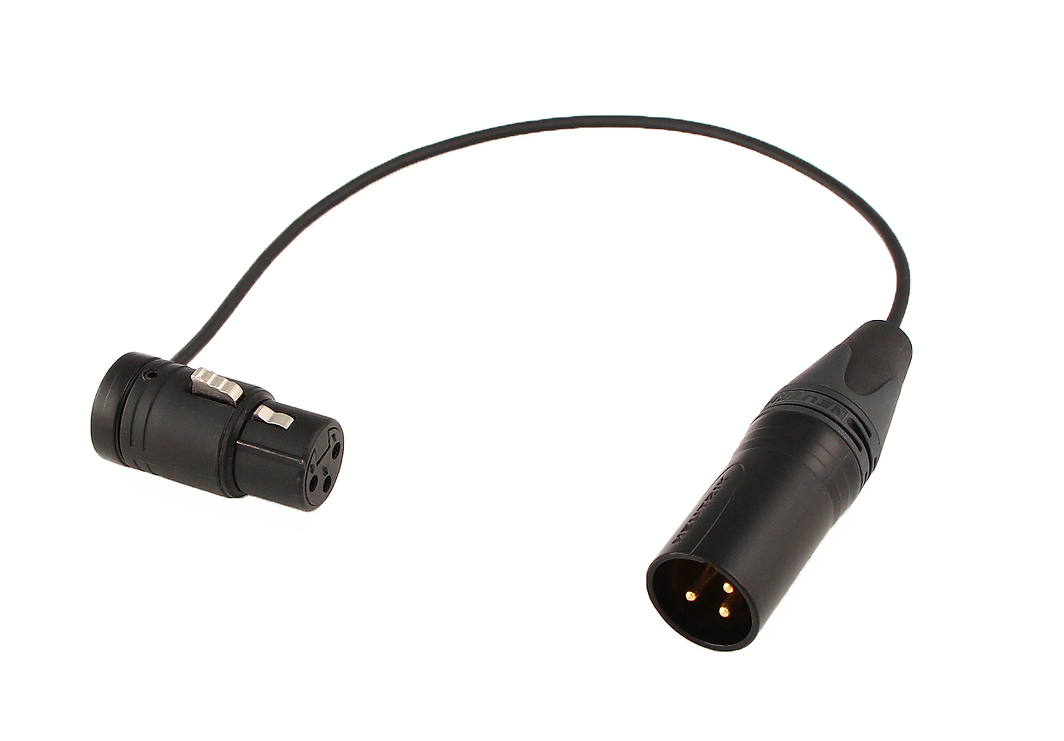

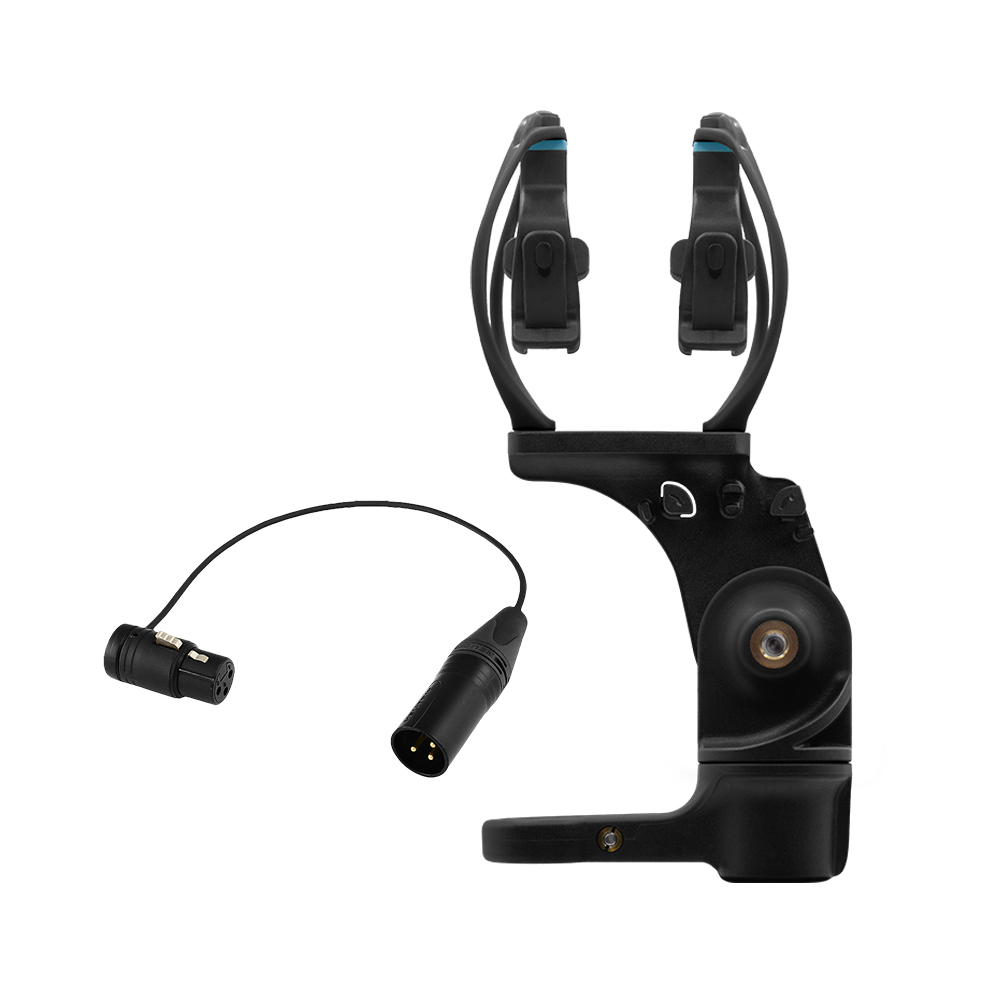

The integrated 3-pin XLR cable features a low-profile connector design that minimizes interference with boom pole operation and reduces the risk of cable disconnection during rapid repositioning. The 360-degree rotatable XLR holder allows operators to orient the connector in the optimal position for cable management regardless of boom angle or microphone orientation.

Field Recording Integration

This shock mount system integrates effectively with slide-on windshield systems, including fur windshields and deadcat-style wind protection. The mount’s clearance accommodates the additional diameter of windshield systems without compromising isolation performance. For outdoor recording applications, the system works in conjunction with Radius Nimbus Windshields and similar slide-on protection systems.

The RAD-2 supports both indoor studio boom work and outdoor location recording. The three-hoop system allows operators to adapt the mount’s characteristics to specific recording environments, microphone weights, and handling requirements without requiring separate mounting hardware.

Boom Operation and Workflow

Professional boom operators benefit from the mount’s ability to minimize handling noise transmission while maintaining secure microphone positioning. The enhanced top bracing prevents microphone droop during extended recording sessions, reducing operator fatigue and maintaining consistent polar pattern orientation.

The integrated XLR connection eliminates the need for separate cable management at the shock mount level, reducing connection points and potential failure modes during field recording. The low-profile connector design allows the boom pole to rest flat during equipment setup and breakdown.

Compatibility and Technical Specifications

The universal clip system accommodates microphones within the 19-25mm diameter specification without requiring adapter rings or modification. The 250mm maximum length specification covers standard shotgun microphone designs while ensuring proper weight distribution through the enhanced hoop system.

For applications requiring specialized microphone positioning, the 360-degree XLR rotation allows cable routing in any direction without twisting or stress on the connection. This feature proves particularly valuable in tight recording spaces or when working around obstacles in location recording scenarios.

Maintenance and Storage

The thermoplastic elastomer construction resists environmental degradation and maintains elasticity across temperature ranges typical in professional recording applications. The modular hoop design allows replacement of individual components without requiring complete mount replacement.

For long-term storage, the three hoop sets should be stored in their relaxed state to maintain elasticity. The XLR cable should be coiled loosely to prevent conductor stress. Regular inspection of the universal clips ensures continued grip security and finish protection.
