RAD-1 Shock Mount for Schoeps CCM/CMC Microphones with Lemo-XLR Cable

Professional Shock Mount for Schoeps Microphones

The RAD-1 Shock Mount CCM/CMC Edition provides professional isolation for Schoeps CCM and Collette series microphones in demanding broadcast and field recording environments. This specialized schoeps shock mount lemo xlr cable system delivers exceptional vibration isolation while maintaining the precise positioning required for professional audio capture.

Construction and Design

The mount features an all-black and grey matte finish, specifically engineered without blue colour elements for discreet operation in professional environments. Manufactured using high-precision injection moulding with virtually indestructible thermoplastic elastomers, the RAD-1 is produced in an ISO-9000 certified facility in England, ensuring consistent quality and reliability.

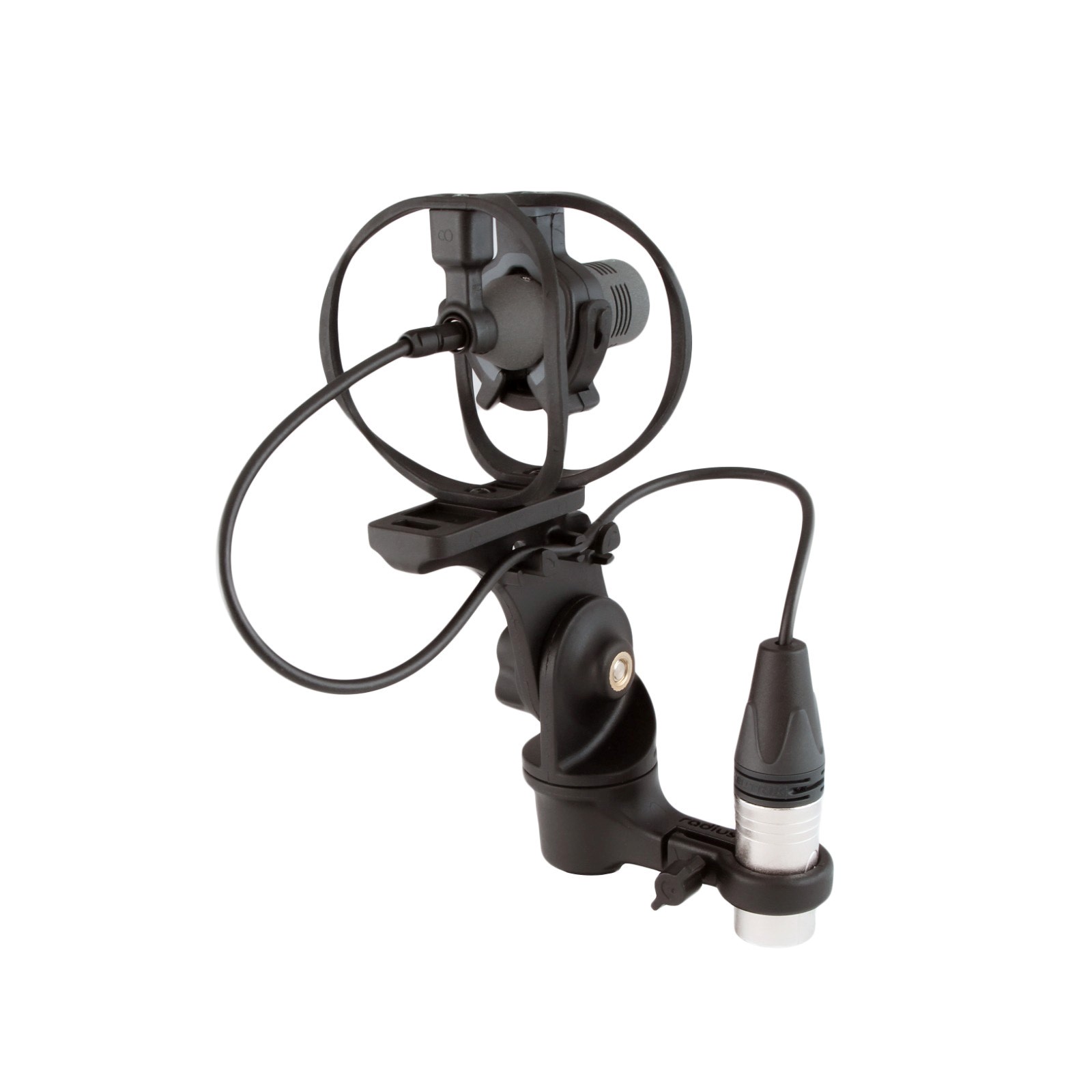

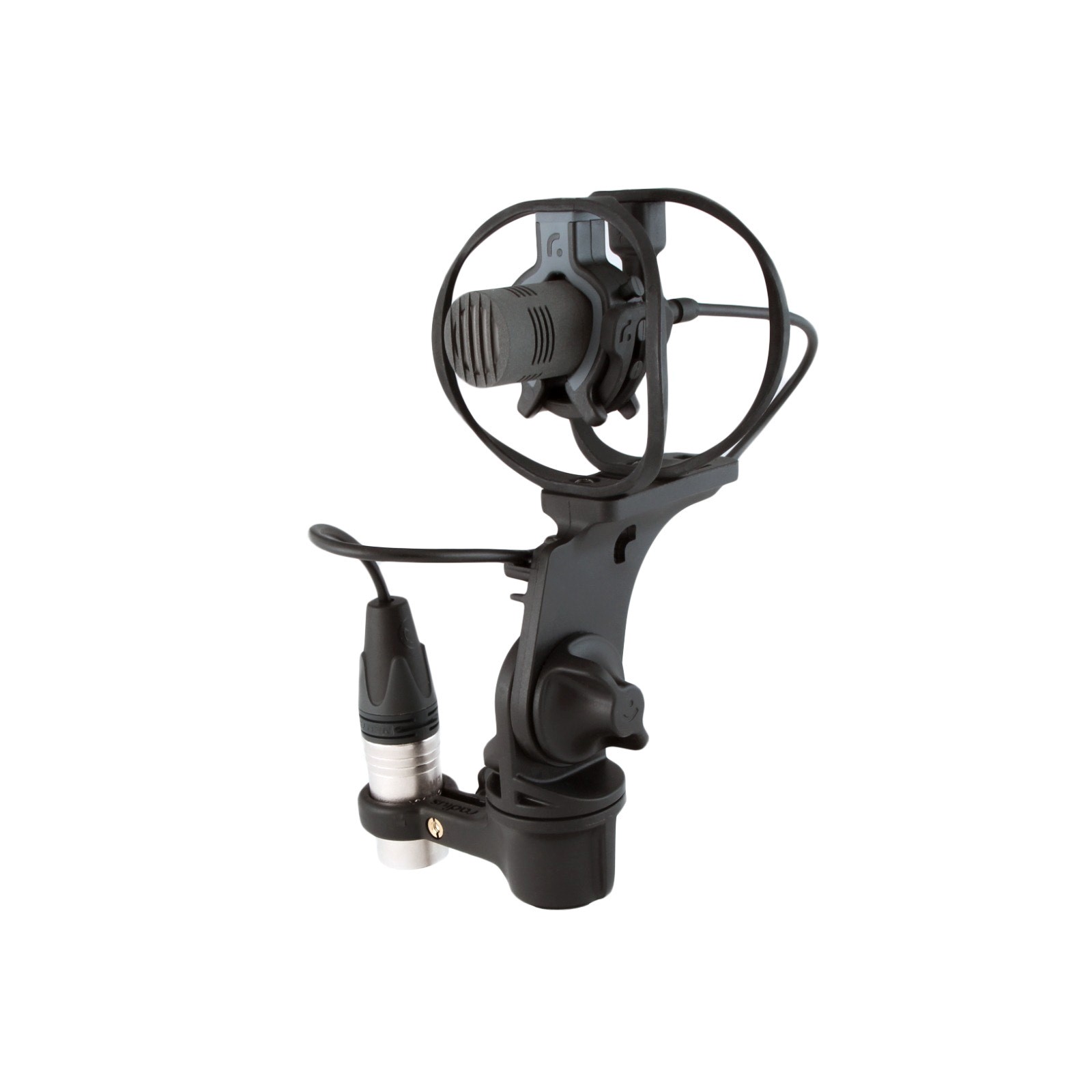

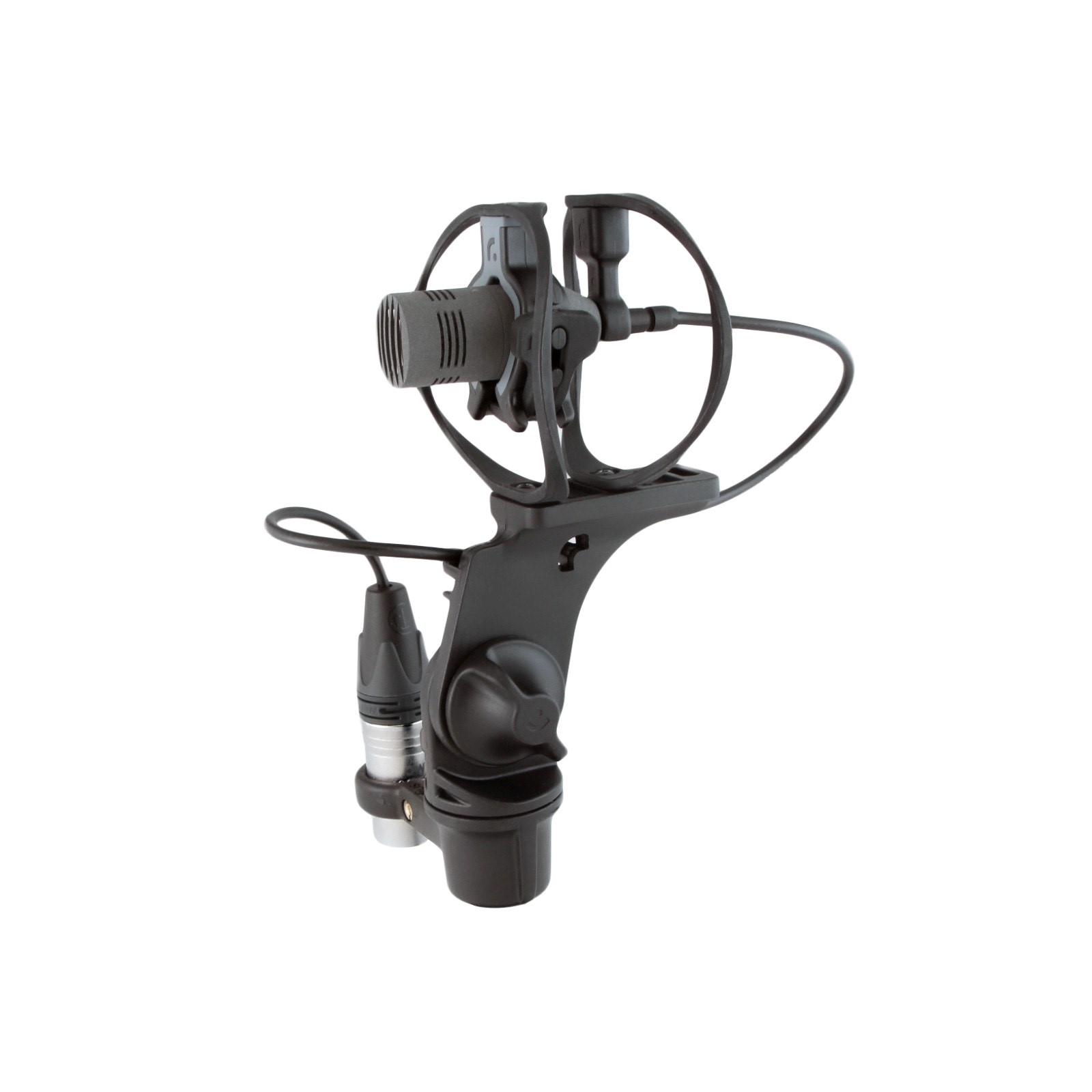

The suspension system incorporates dual mic clip configurations: two dark grey rubber-coated universal clips plus an additional 8mm black rear clip specifically designed for Lemo connectors. This arrangement provides secure mounting while accommodating the unique connector requirements of Schoeps microphones.

Dual-Firmness Isolation System

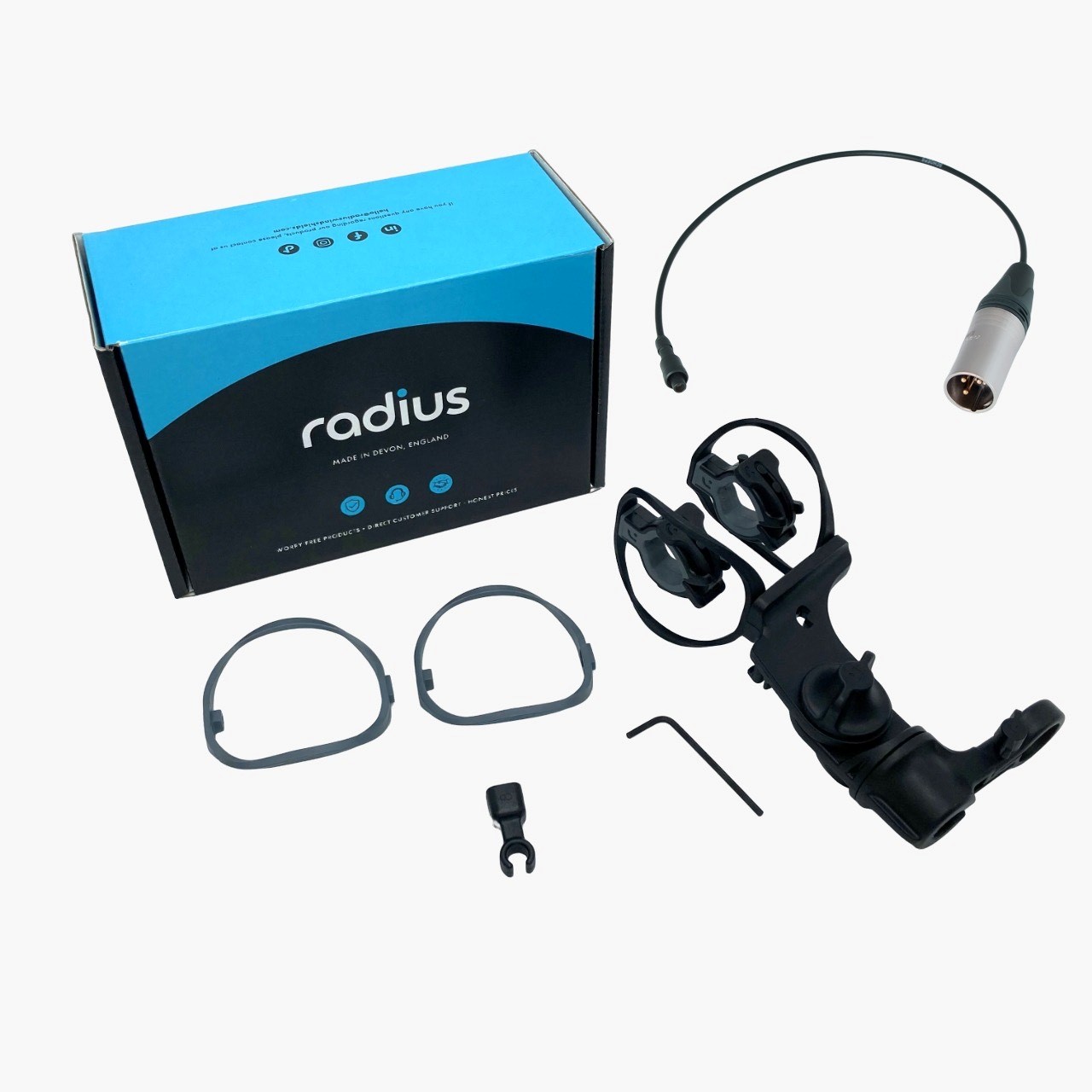

Each RAD-1 includes two pairs of interchangeable hoops to optimize isolation for different operational requirements. The standard firmness hoops (black) provide balanced isolation for general boom operation, while the softer hoops (dark grey) offer enhanced vibration damping for sensitive recording situations or when working with particularly responsive microphones.

This dual-hoop system allows operators to match the suspension characteristics to their specific workflow, whether conducting interviews, recording dialogue, or capturing ambient audio in challenging acoustic environments.

Microphone Compatibility

The RAD-1 CCM/CMC Edition is engineered for compatibility with Schoeps CCM microphones and capsules paired with CMC1-U, CMC1-L, and CMC1-K amplifiers. The mount also accommodates CMC6, CMC6-XT, CMC6/CUT60, and CMD42 configurations when used with standard microphone foam for wind protection.

For applications requiring heavier slide-on wind protection systems, the manufacturer recommends considering the RAD-2 model to ensure optimal balance and isolation performance.

Integrated Cable Solution

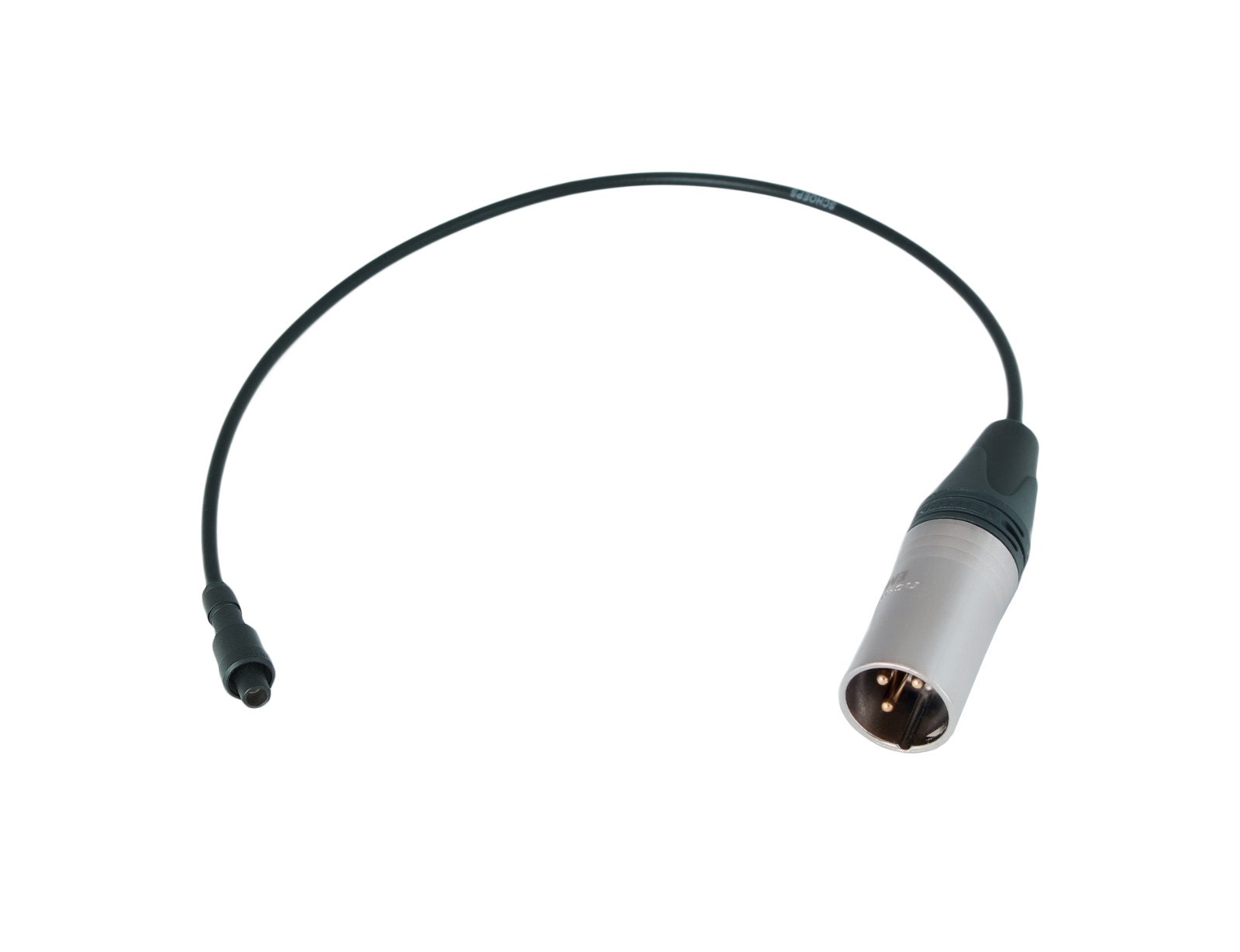

The included 200mm Lemo-to-XLR cable provides immediate connectivity between Schoeps microphones and standard broadcast equipment. This purpose-built cable eliminates the need for separate adaptors while maintaining signal integrity throughout the audio chain.

The integrated approach reduces connection points and potential failure modes, particularly important in field recording environments where reliability is paramount. The cable length is optimized for boom operation while minimizing cable management complexity.

Professional Workflow Integration

The 360-degree rotatable XLR holder enables precise microphone orientation without compromising the isolation characteristics of the suspension system. This feature proves essential when working in confined spaces or when specific directional positioning is required for optimal pickup patterns.

The mount’s design facilitates rapid microphone changes between takes, with secure locking mechanisms that maintain positioning once established. This operational efficiency becomes critical during extended recording sessions or when working under time constraints typical of broadcast production.

Broadcast Applications

In broadcast environments, the RAD-1 excels at eliminating low-frequency handling noise and mechanical vibrations that can compromise audio quality. The suspension system effectively isolates the microphone from boom pole resonances and operator movement, maintaining clean signal capture even during dynamic recording situations.

The discrete matte finish ensures minimal visual distraction when microphones appear within camera frames, while the robust construction withstands the repetitive handling demands of professional broadcast operation. According to technical specifications from Schoeps, proper shock mounting significantly improves the signal-to-noise ratio of their precision condenser microphones.

Care and Maintenance

The thermoplastic elastomer construction requires minimal maintenance while providing long-term durability. Regular inspection of the rubber components ensures continued isolation performance, with replacement hoops available when operational demands exceed normal wear patterns.

Storage in protective cases prevents deformation of the isolation hoops and maintains the precision fit required for optimal performance. The modular design facilitates field servicing when component replacement becomes necessary.
